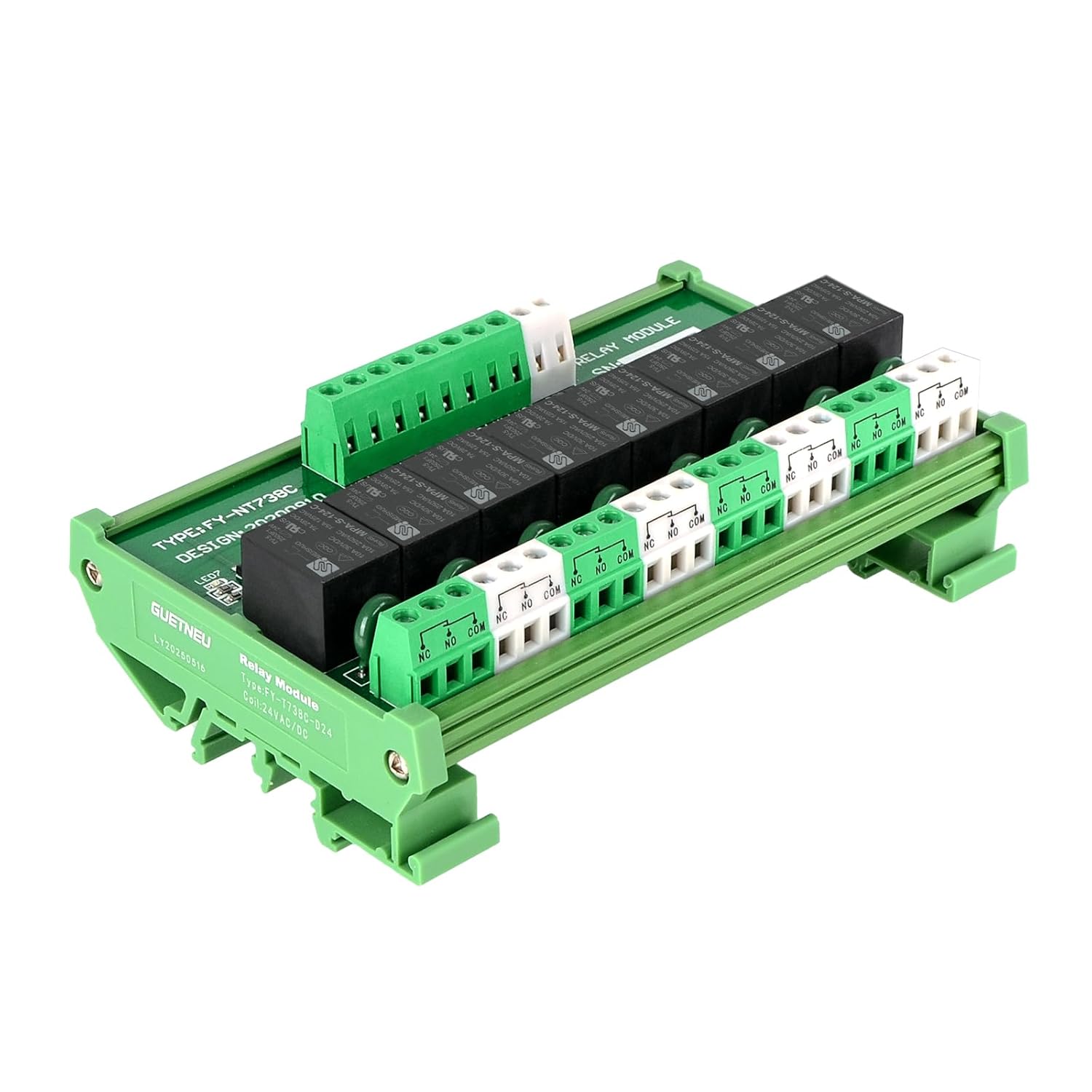

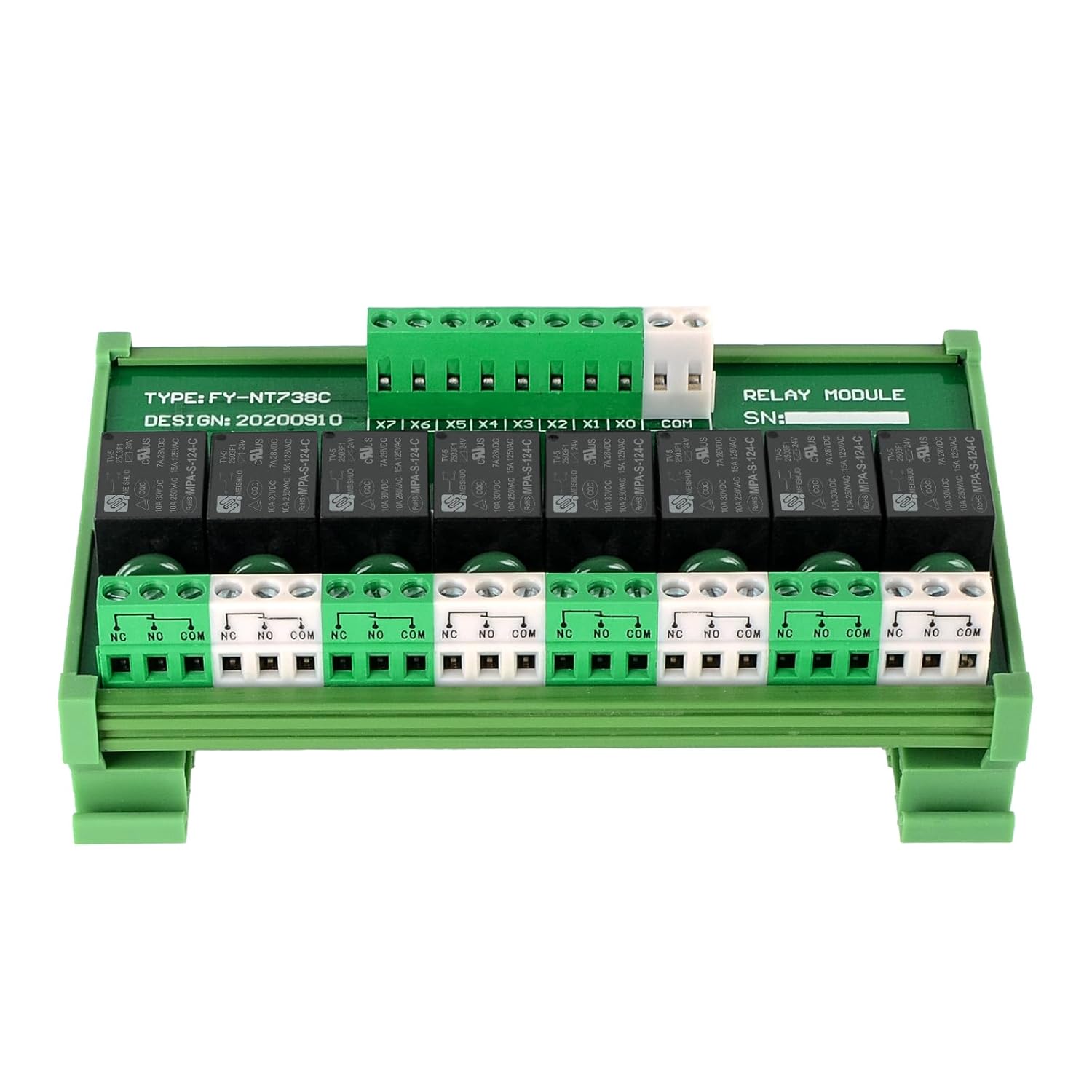

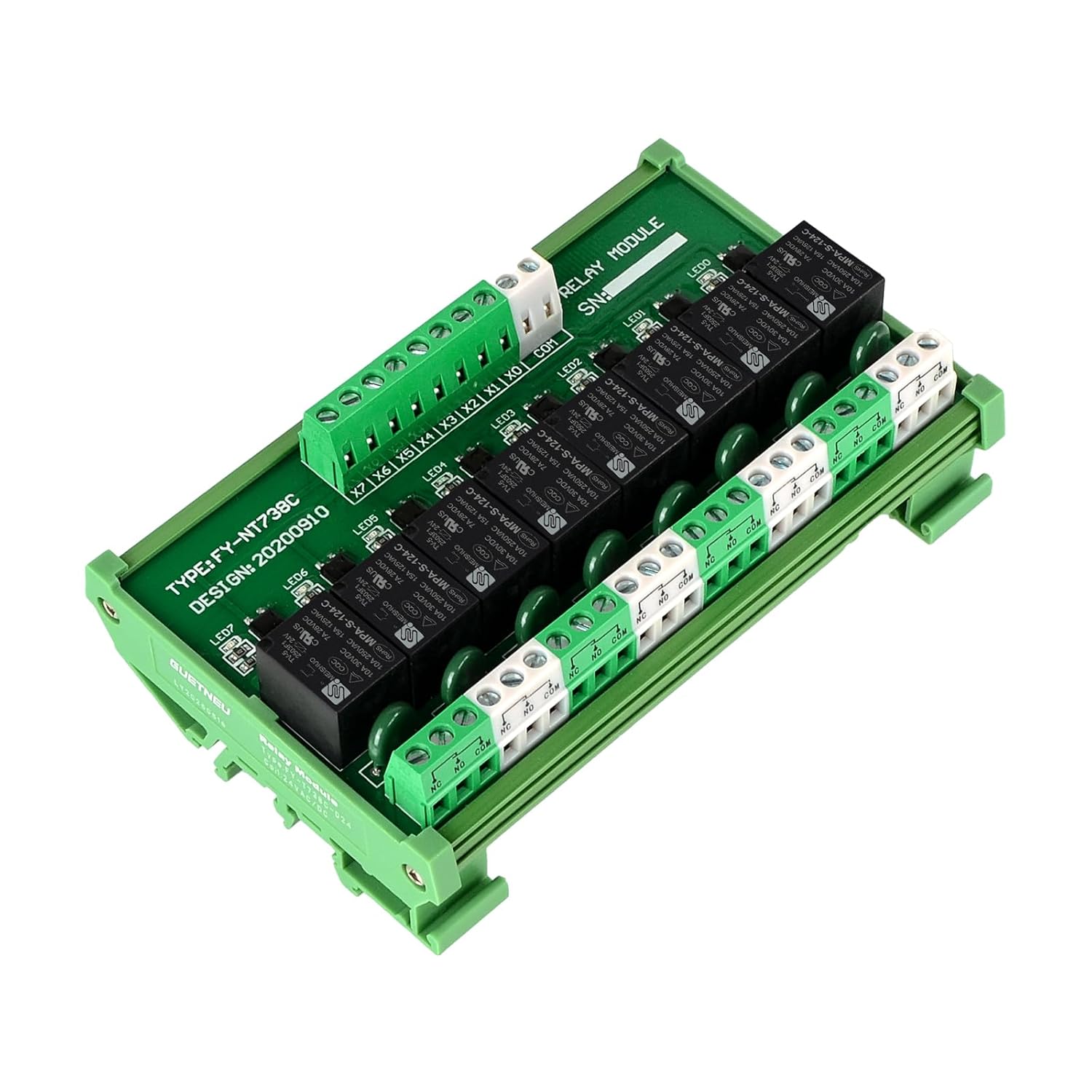

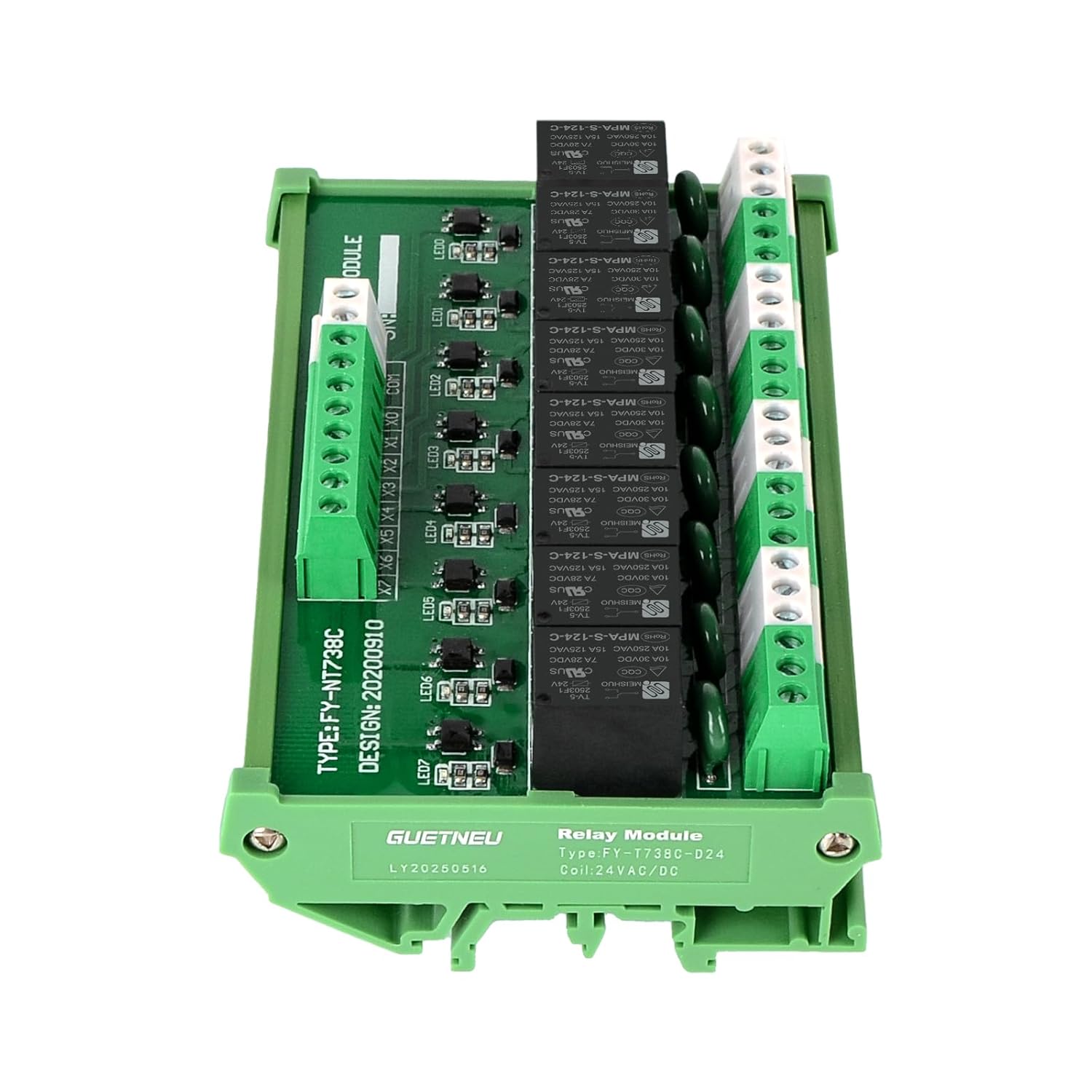

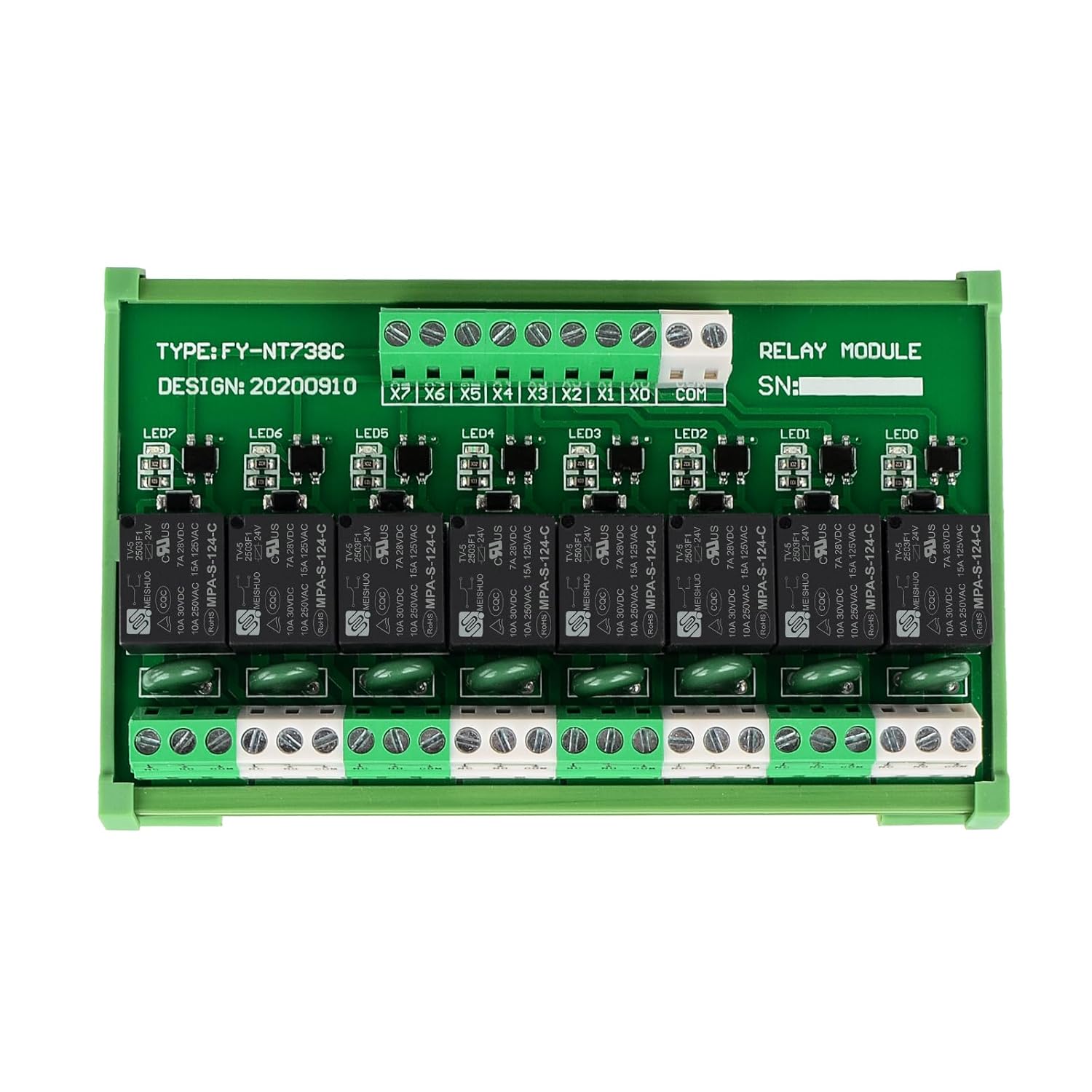

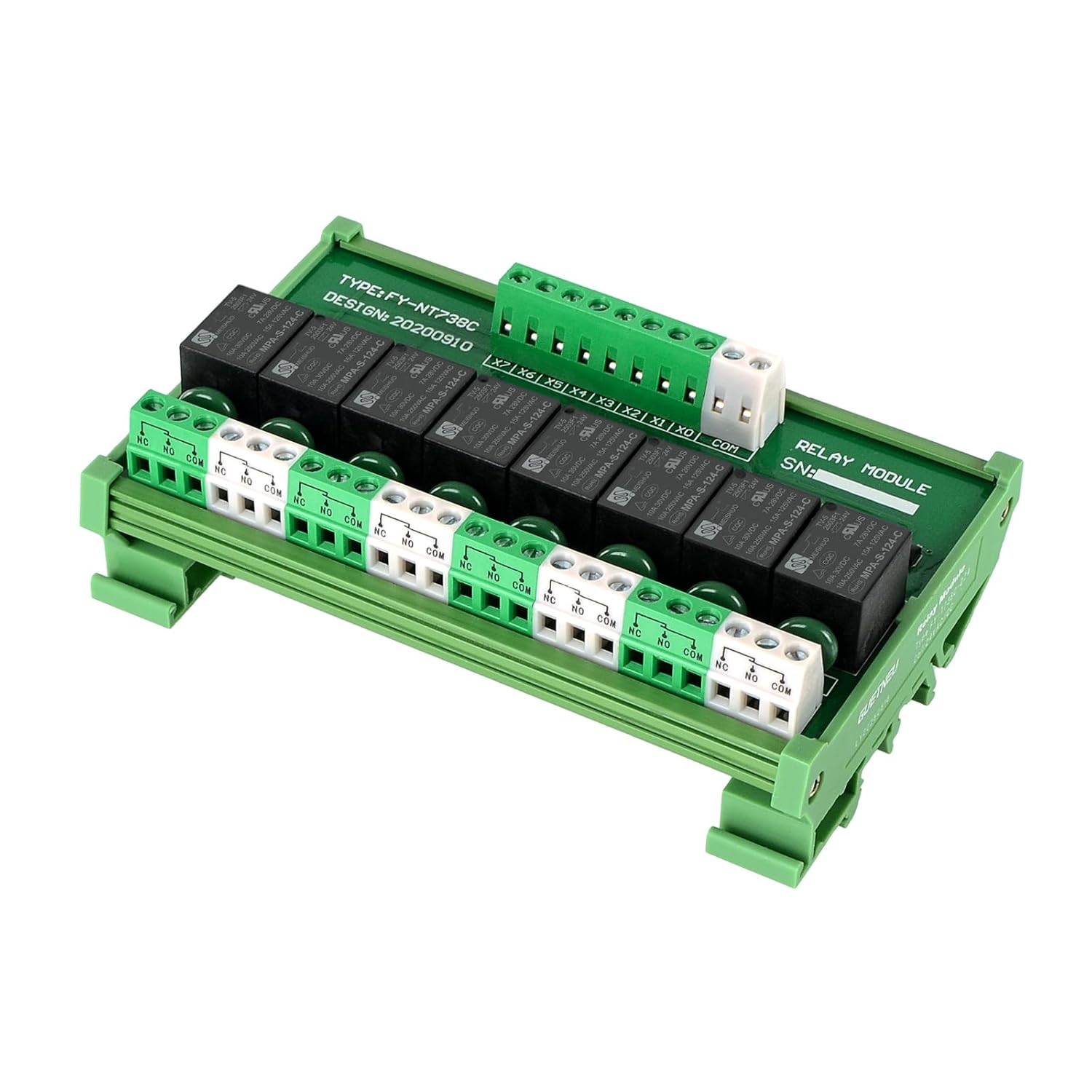

Relay Board, 8 Channel 1 SPDT DIN Rail Mount 24V DC/AC Relay, Interface Board

Overview

• Connector Type : Plug-In
• Contact Material : Silver Alloy
• Contact Type : Normally Open
• Current Rating : 10 Amps
• Mounting Type : DIN Rail Mount

About this item

• About Relay Module: Relay modules is designed to amplify current of output loads; It is mainly used for PLC, microprocessor systems and time relays etc, amplifying the control current of outputs, to protect key control systems not being destroyed
• 8 Independent Channels with Premium Build: Features 8 individual relays for separate device/circuit control, constructed with high-grade nylon for superior insulation, heat/wear resistance, and silver-alloy contacts ensuring excellent conductivity, low contact resistance, and reliable switching performance
• Easy to Install: Optional 1/2/4/8/16 channels relay interface, stable and convenient; You could also remove it from the green bracket to make it small enough to fit in narrow space such as the wall
• Easy and Safe to Use: Each relay board is well labeled for clear operation, equipped with LED indicators to allow you to know what relay is working and the signal status, designed with over voltage protection and surge suppression protection for safety
• Product Parameters: Model Number FY-NT738C-D24, power source DC, rated voltage 24VAC/DC, rated load current:10A 250VAC/30VDC
