Global 5G DONGLE Expansion Board, USB 3.2 Port, Onboard M.2 Key B Interface, Quad Antennas, Aluminum Alloy Case, with Qualcomm RM530N-GL 5G Sub-6G & mmWave Module @XYGStudy (RM530N-GL 5G DONGLE (B))

Overview

• Brand : XYGStudy
• Model Name : RM530N-GL 5G DONGLE (B)
• Connectivity Technology : USB 3.2, Wi-Fi, 5G NR
• Included Components : RM530N-GL 5G DONGLE (B)
• CPU Manufacturer : Qualcomm

About this item

• Part Number: RM530N-GL 5G DONGLE (B)

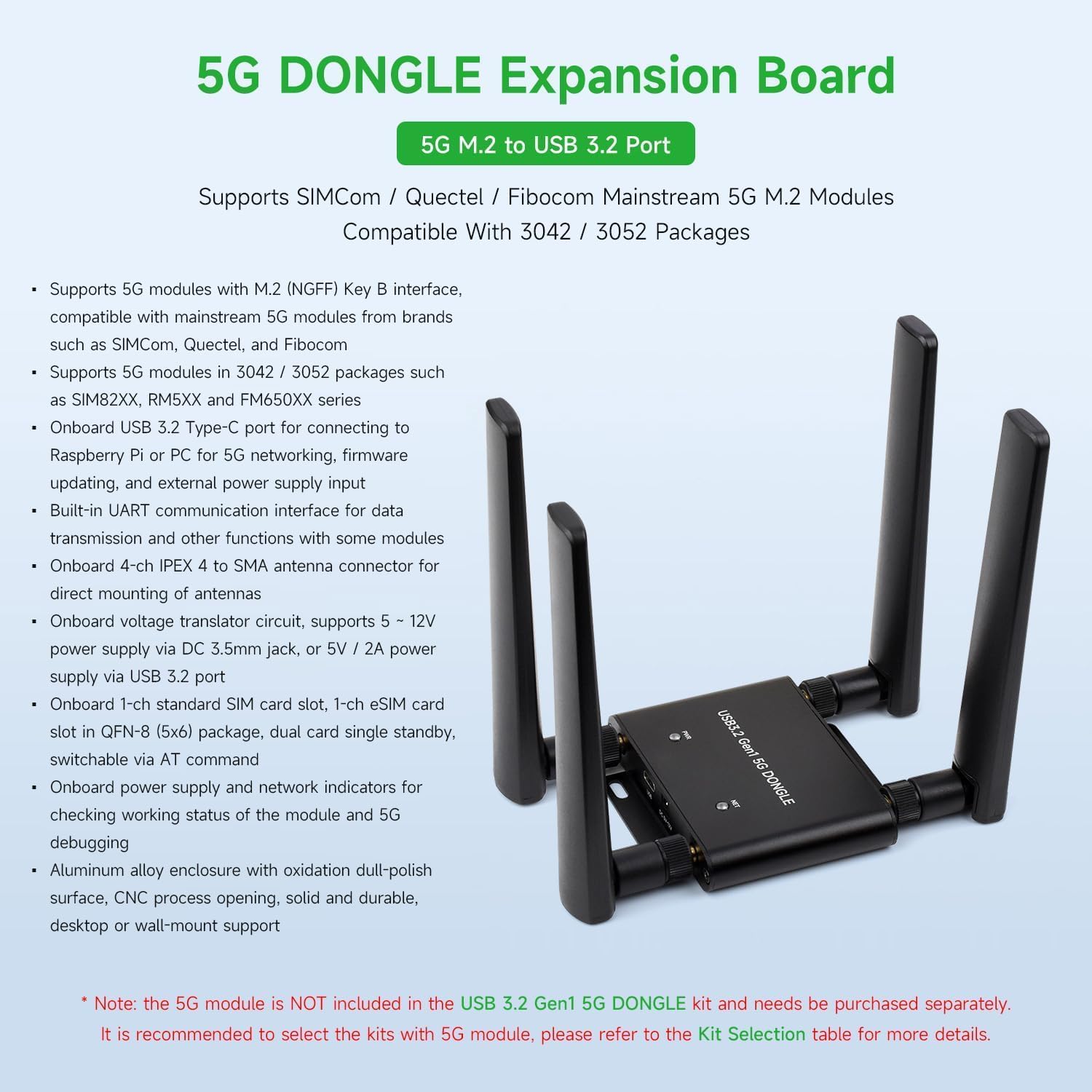

• 5G DONGLE Expansion Board, USB 3.2 Port, Aluminum Alloy Case, Quad Antennas, Onboard M.2 Key B Interface, Options For 5G Module

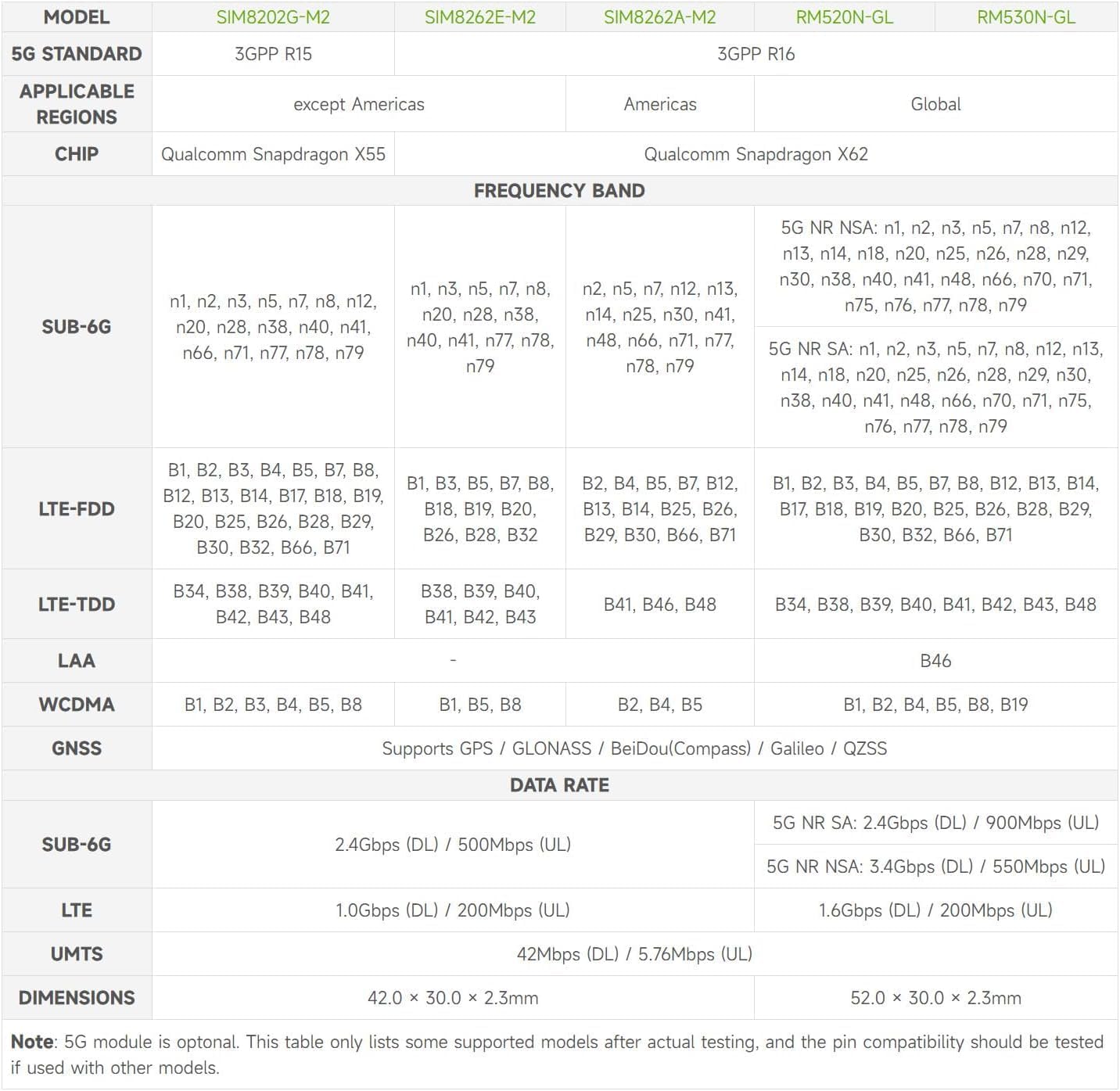

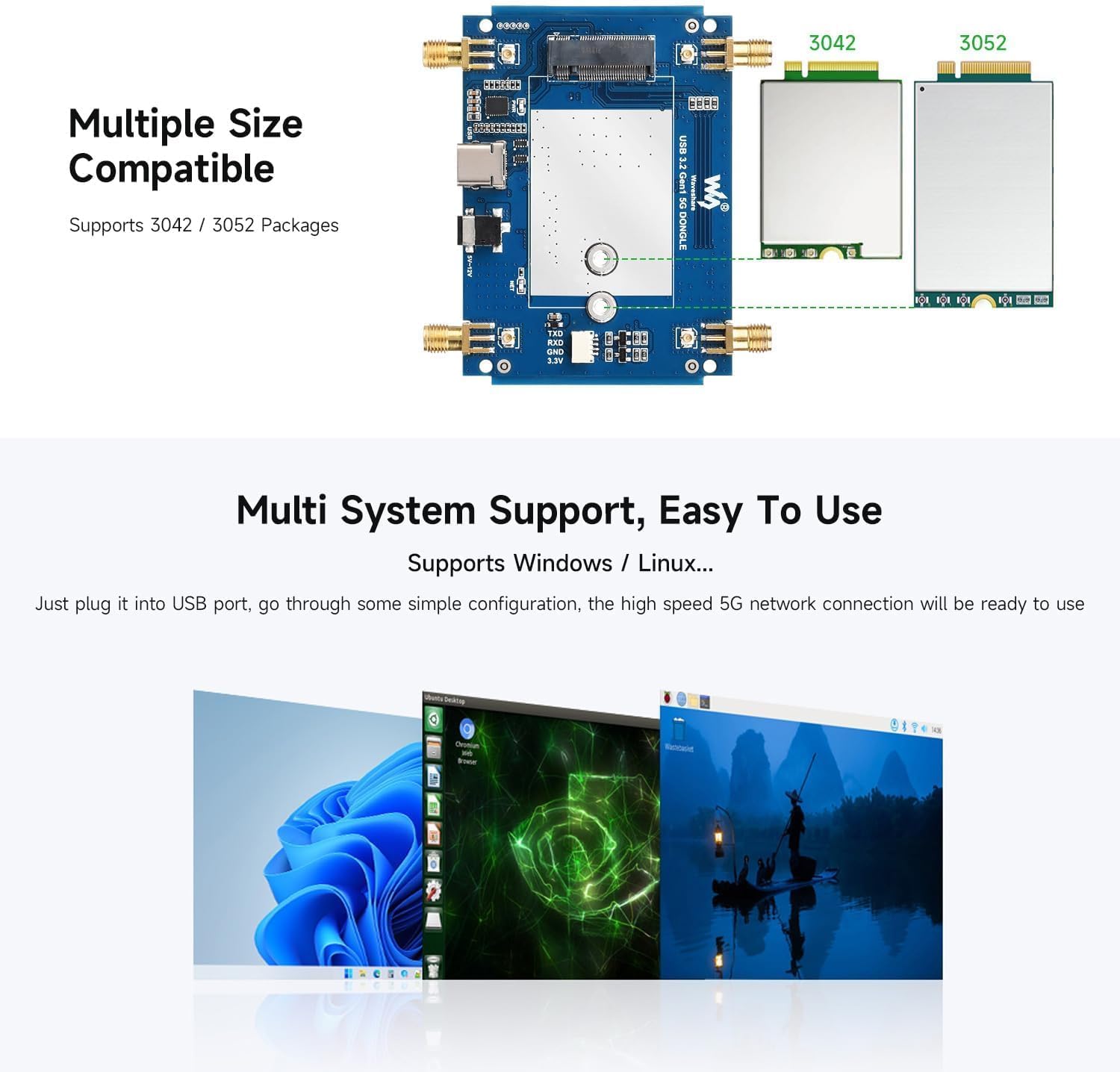

• Supports 5G modules with M.2 (NGFF) Key B interface, compatible with mainstream 5G modules from brands such as SIMCom, Quectel, and Fibocom. Supports 5G modules in 3042 / 3052 packages such as SIM82XX, RM5XX and FM650XX series

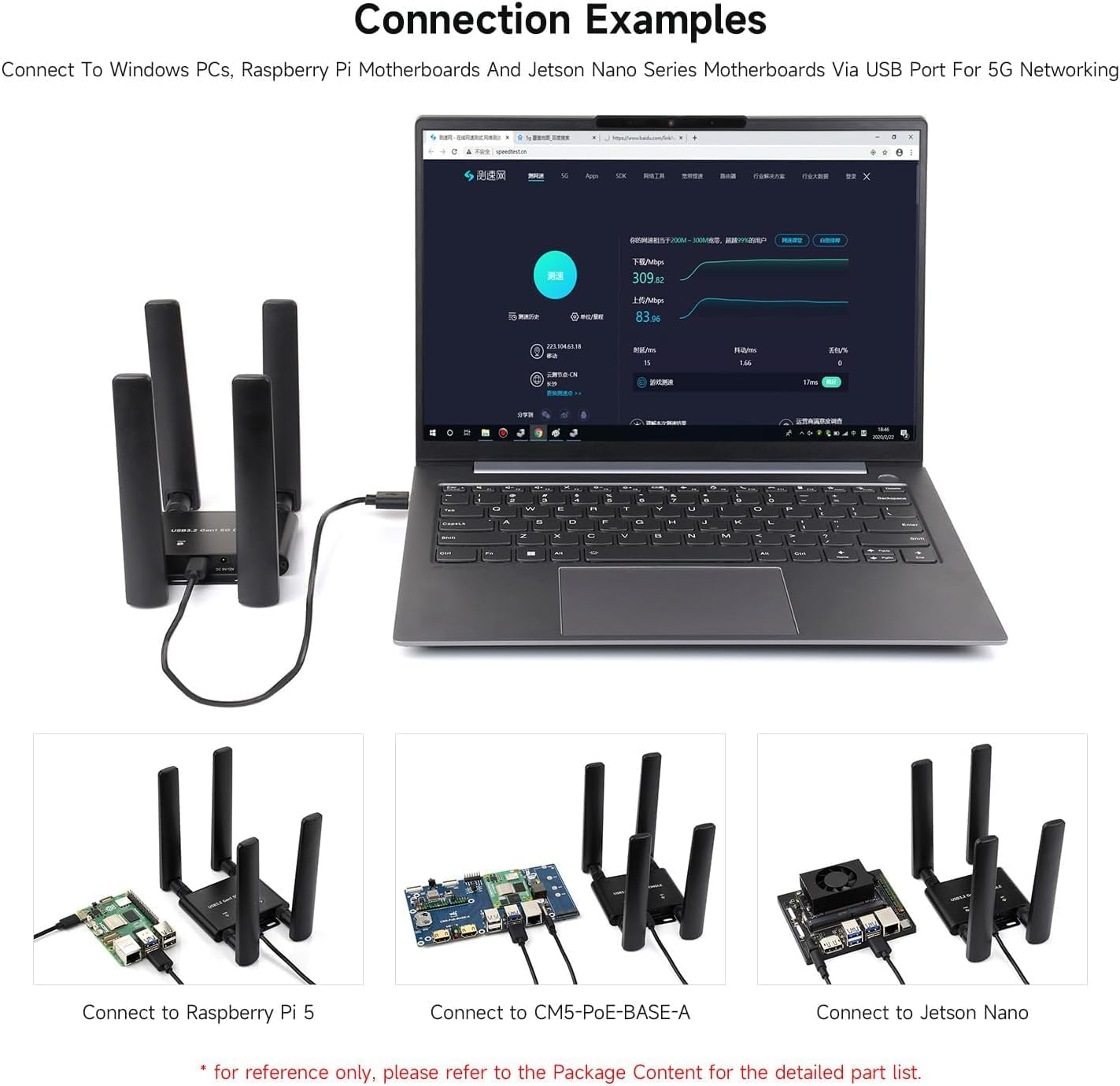

• Onboard USB 3.2 Type-C port for connecting to Raspberry Pi or PC for 5G networking, firmware updating, and external power supply input. Built-in UART communication interface for data transmission and other functions with some modules
• Onboard 4-ch IPEX 4 to SMA antenna connector for direct mounting of antennas. Onboard voltage translator circuit, supports 5 ~ 12V power supply via DC 3.5mm jack, or 5V / 2A power supply via USB 3.2 port. Onboard 1-ch standard SIM card slot, 1-ch eSIM card slot in QFN-8 (5x6) package, dual card single standby, switchable via AT command
