Professional 4-Port Universal Remote Power Switch - Phone Control + Web Control

Overview

• Connector Type : RJ45
• Brand : AllAboutAdapters
• Compatible Devices : Monitor, Personal Computer
• Number of Ports : 4
• Manufacturer : AllAboutAdapters

About this item

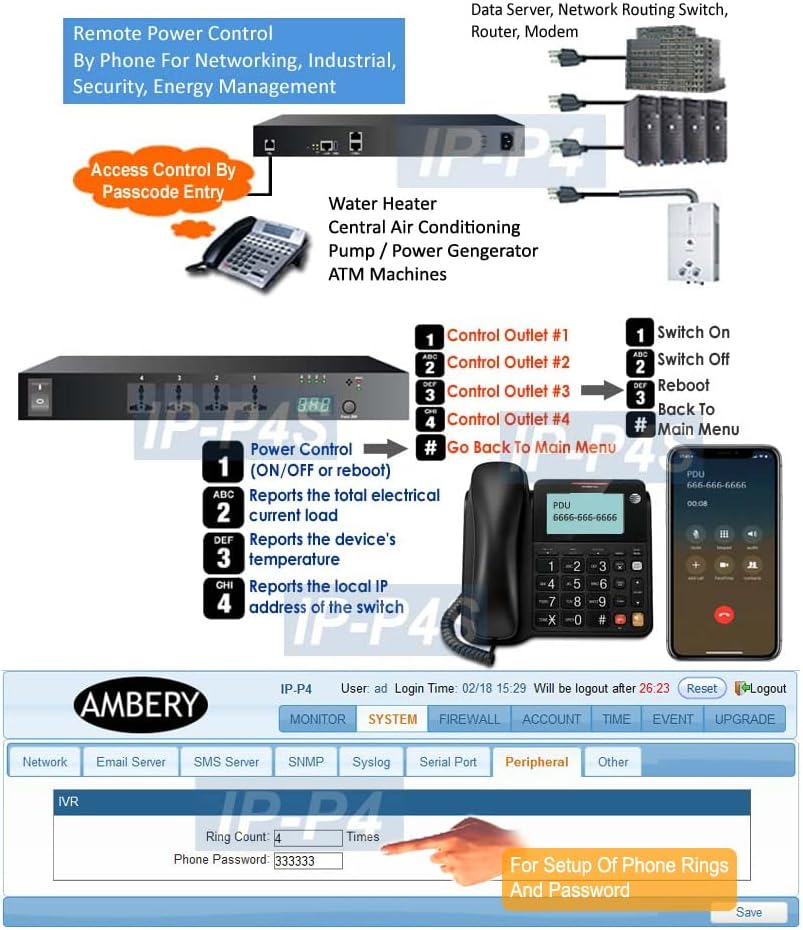

• Professional IP-addressable power distribution unit with built-in web server with 4 AC outlets. Remote management of AC power distribution through LAN, WAN/Internet, RS232 console port or telephone.
• All AC outlets can be independently controlled locally and remotely. AC outlets from the power switch can be turned on/off or immediate reboot with or without timed delay, power cycle sequence with assigned priority and power event scheduling.

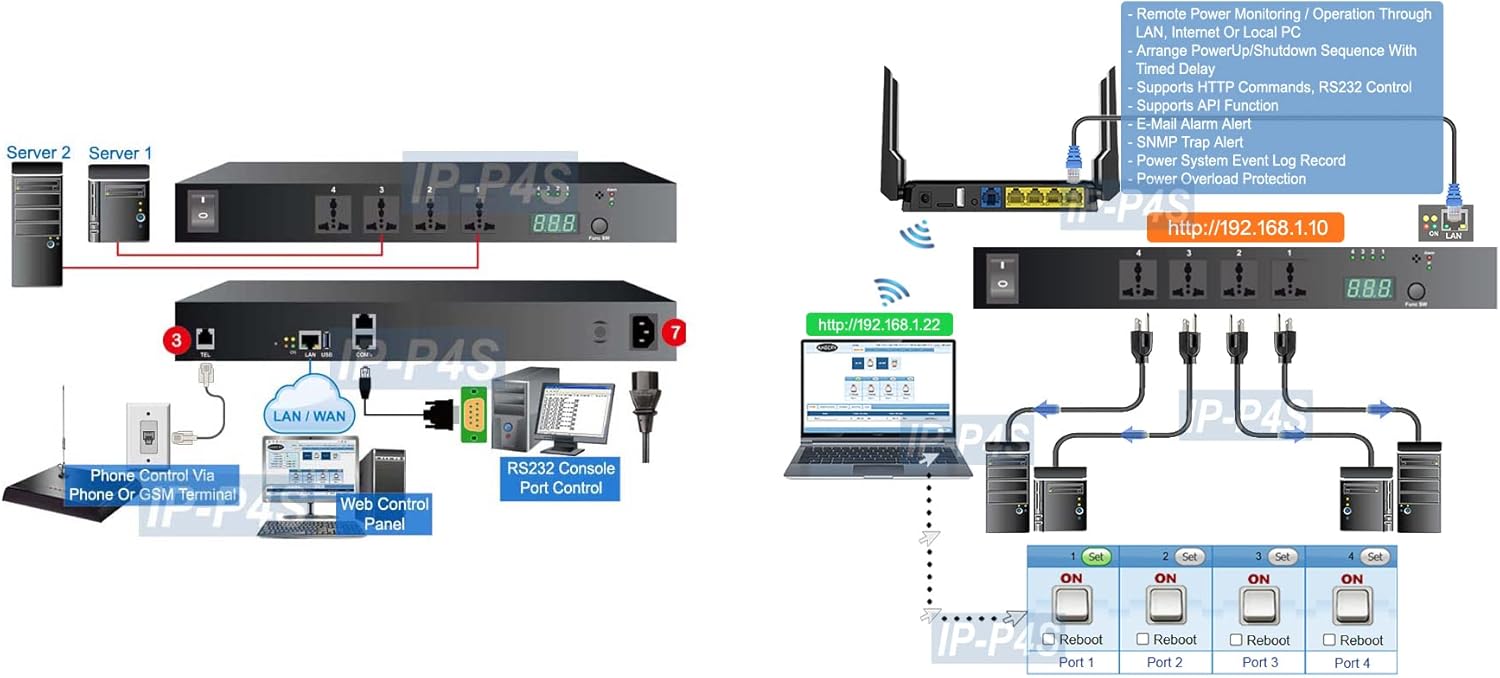

• Complete power control via web, network, telephone, PC RS232 terminal or On/Off button on front panel. Real-time monitoring of amperage draw and site temperature through the internal sensor and current meter.
• Manual power on/off button to override the existing power status and gain immediate control from local access. LED displays for power status, total current and control mode indication.

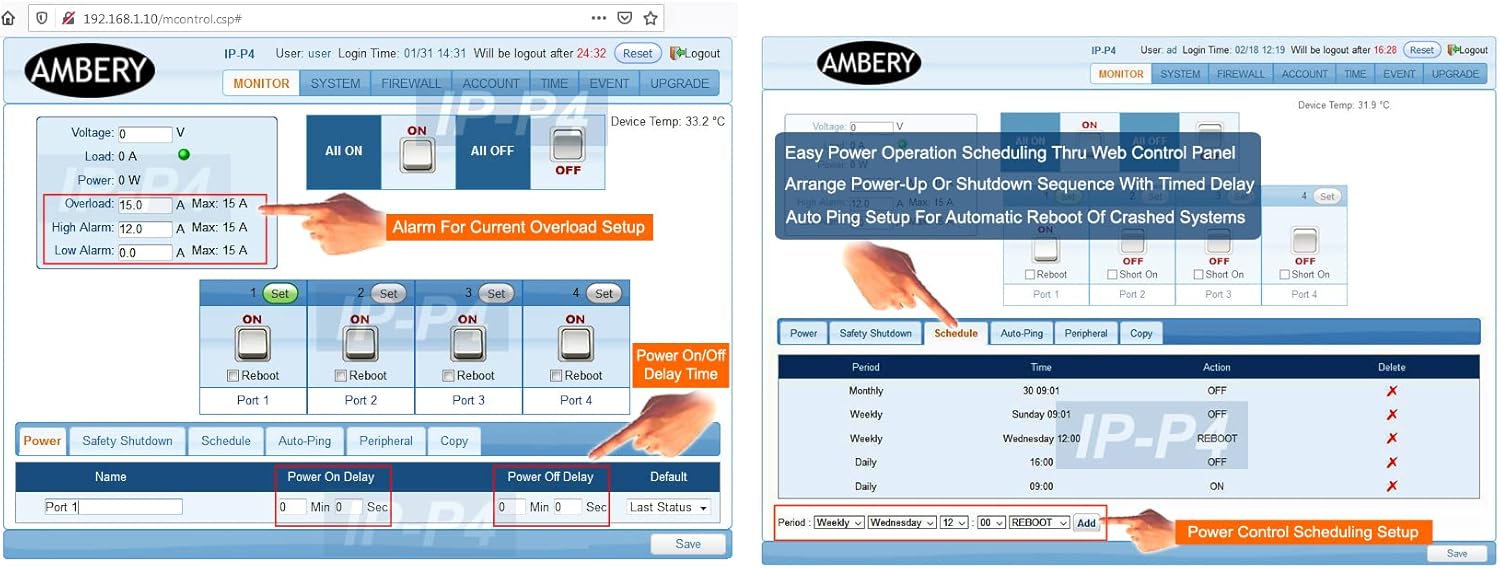

• Power-up sequence with priority so connected equipments can be started up in proper sequence and prevent sudden overloading. Easy web scheduling for power operations performed on specific outlet daily, weekly or monthly.

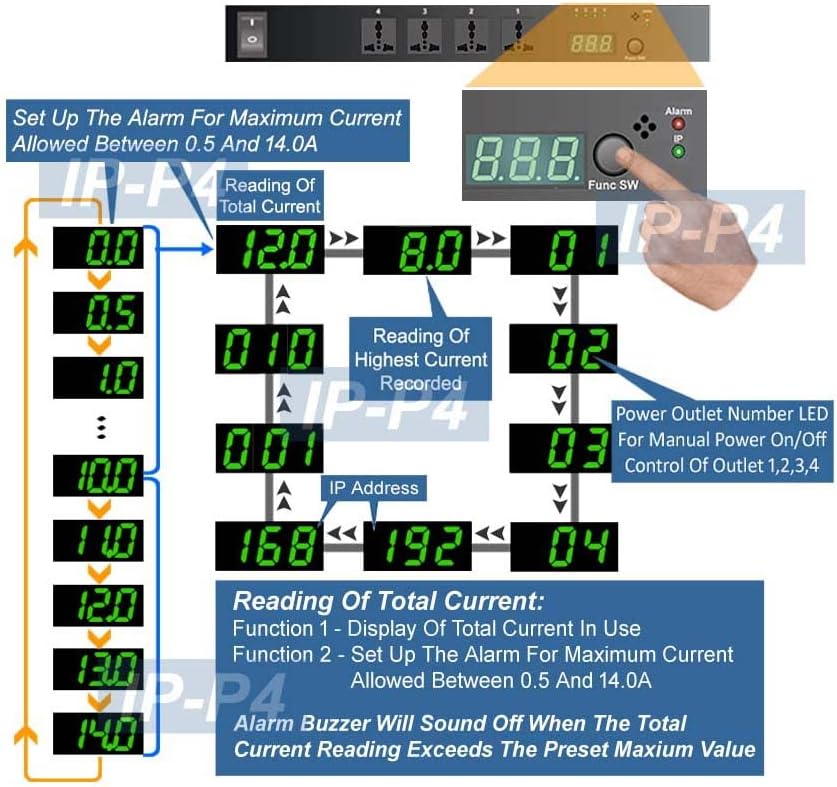

• Users can also control the power on/off, checking the reading of electrical current load, IP address or setting up the alarm buzzer for overload simply through the push button and the LED indicators on the front panel. Supports API functions, HTTP/HTTPS and RS232 serial port control commands for engineer to develop customized power management applications and build integration with other programs.
• Featured with 2 Com ports for long distance control or sync control with 2nd PDU through daisy chain connection. 1024-bit SSL security encryption. IP and MAC filtering to restrict the operation computer of devices. SNMP (V1/ V2/ V3) and SNMP Trap support.
• Supports Wake- On-LAN protocol for remotely starting up computers. Software safe shutdown help terminate running applications before powering off the computers or data servers. Auto-Ping function for detecting any failed network equipment and performing timely reboot or other power controls.

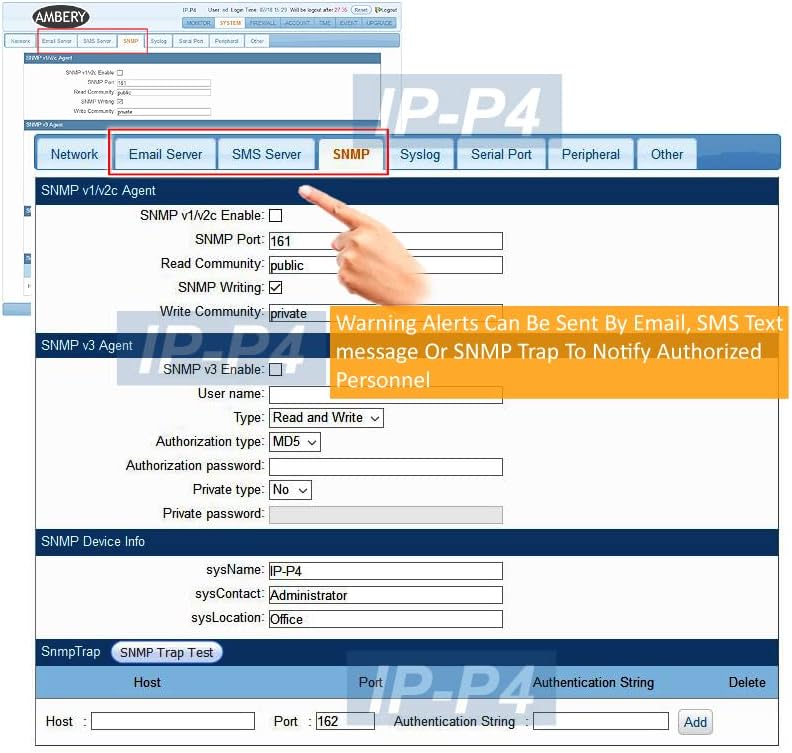

• IP filter/mask function with access management helps prevent unauthorized users' access. Early warning alert sent by email, SMS text message or SNMP Trap to notify authorized personnel. Alarm buzzer setup through web control panel or manual push button for power current overload warning.
• 15-AMP circuit breaker protection to avoid power overload and protect connected devices. 1U rack mount ready. The 19" rack mounting ears are optional and purchased separately. Designed for high voltage resistance and protection for leakage of electrical currency.
