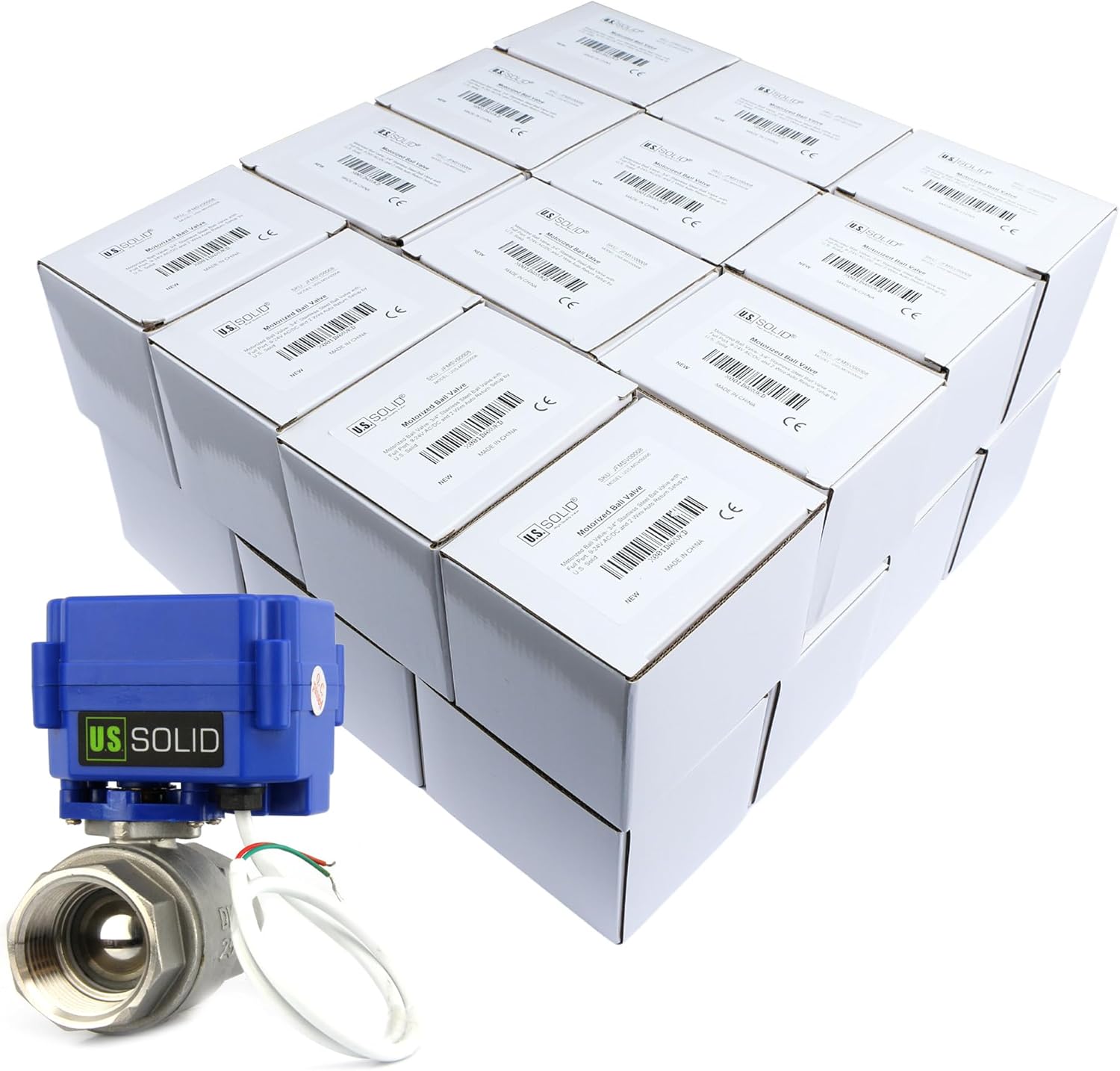

U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)

U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)

$2,079.98
Skip to product information
U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)
  • U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)
  • U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)
  • U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)
  • U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)
  • U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)
  • U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)
  • U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)
  • U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)
  • U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)
  • U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)
  • U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)
  • U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)
U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)

U.S. Solid Motorized Ball Valve- 1" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup (Pack of 25)

$2,079.98

Overview

  • Material : Stainless Steel
  • Brand : U.S. Solid
  • Item dimensions L x W x H : 15.75 x 13.39 x 7.09 inches
  • Exterior Finish : Stainless Steel
  • Inlet Connection Size : 1 Inches
  • Inlet Connection Type : Full port
  • Outlet Connection Type : Full Port
  • Maximum Operating Pressure : 10 Bars
  • Outlet Connection Size : 1 Inches
  • Specification Met : NSF

About this item

  • SAFE AND RELIABLE – Made from SS304 stainless steel and NSF certified, this ball valve is safe for drinking water. It has a lifespan of 80,000 to 100,000 cycles.

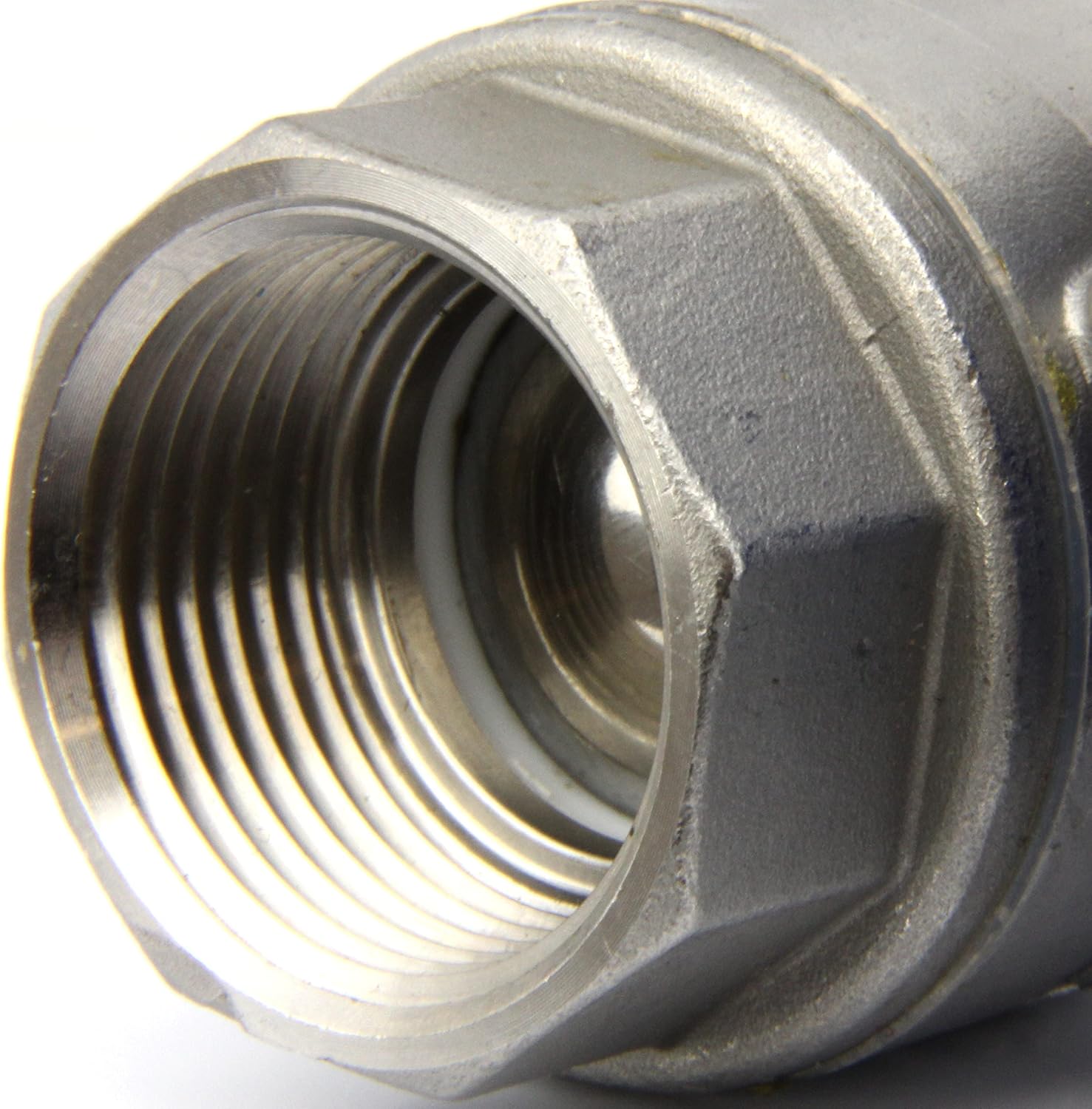

  • NPT THREADING – 1" stainless steel threading, manufactured and measured according to National Pipe Thread (NPT) standards. This full-port electrical ball valve features a ½” bore, minimizing pressure loss through the valve, making it ideal for home automation projects.
  • 9V-24V AC/DC – Operates effectively across the entire voltage range; opens or closes the valve in 3-5 seconds. The limit switch reduces power consumption once the valve is fully open, making it ideal for projects requiring automatic return.
  • 2-WIRE AUTOMATIC RETURN SETUP – Simple two-wire connection; the valve largely de-energizes after opening and returns to fully closed if power is removed.
  • ALTERNATIVE TO SOLENOID VALVES – Automatically cuts off power once fully open or closed, reducing the risk of overheating. Ideal for projects requiring a valve to remain open for extended periods. OUTDOOR INSTALLATION TIP – If permanently installed outdoors, it is recommended to place the valve under a shelter or inside a protective box to prevent prolonged exposure to rain.
