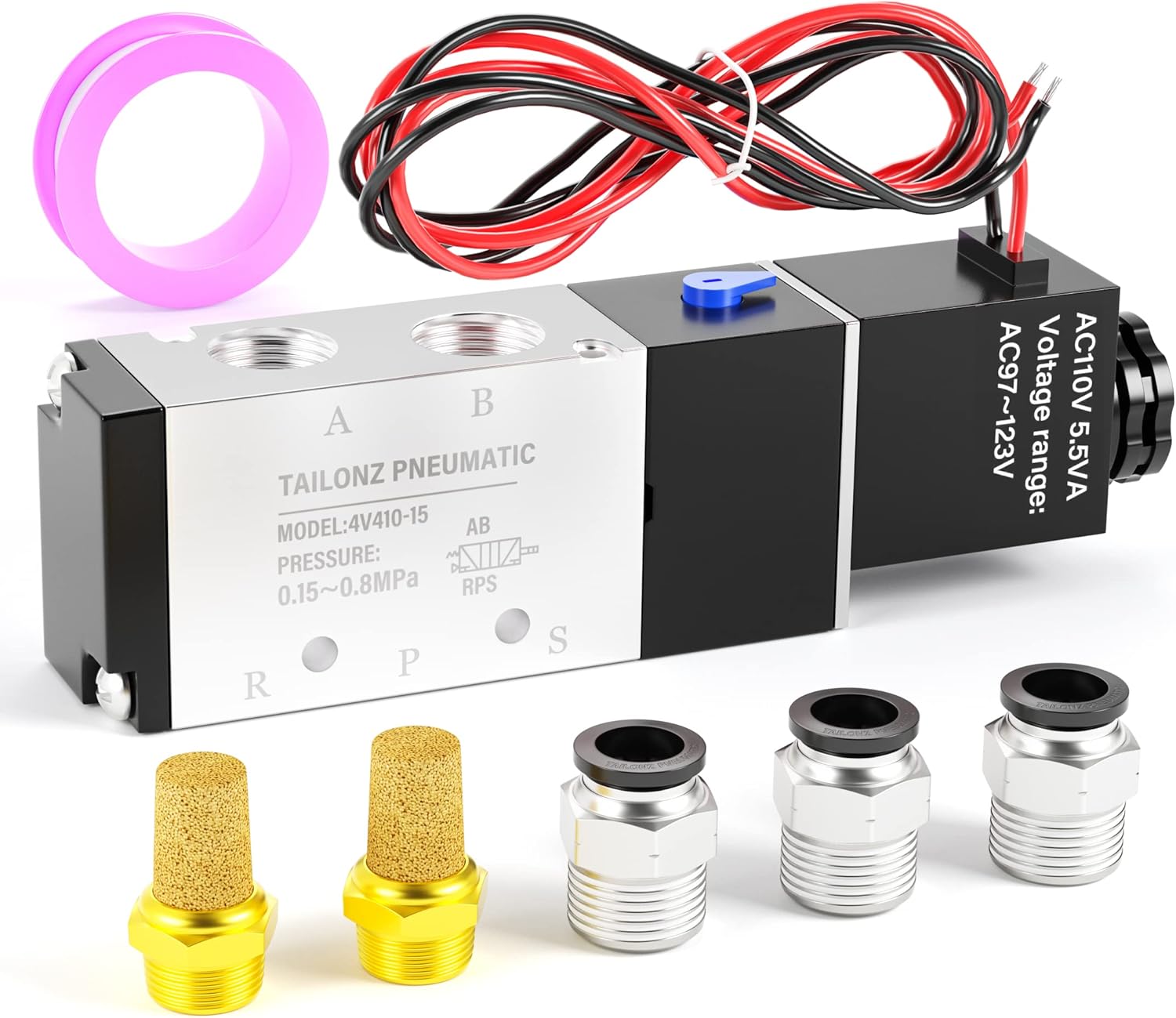

TAILONZ PNEUMATIC 1/2"NPT Solenoid Valve 4V410-15 12V/24V/110V/220V Single Coil Pilot-Operated Electric 2 Position 5 Way Connection Type

Overview

• Material : Aluminum
• Brand : TAILONZ PNEUMATIC
• Exterior Finish : Aluminum
• Inlet Connection Size : 1/2"NPT Inches
• Inlet Connection Type : National Pipe Tapered
• Outlet Connection Type : MNPT
• Maximum Operating Pressure : 116 Pound per Square Inch
• Number of Ports : 5
• Outlet Connection Size : 1/2"NPT Inches
• Specification Met : ASME, ASTM, ANSI, UL, CSA, ETL, RoHS, CE

About this item

• 【Product Name】2 Position 5 Way Solenoid Valve（Outlet wire）
• 【Voltage】AC110V【Working Pressure】25~116Psi
• 【working principle】Valve stays open when the coil is de-energized- and it closes when energized.

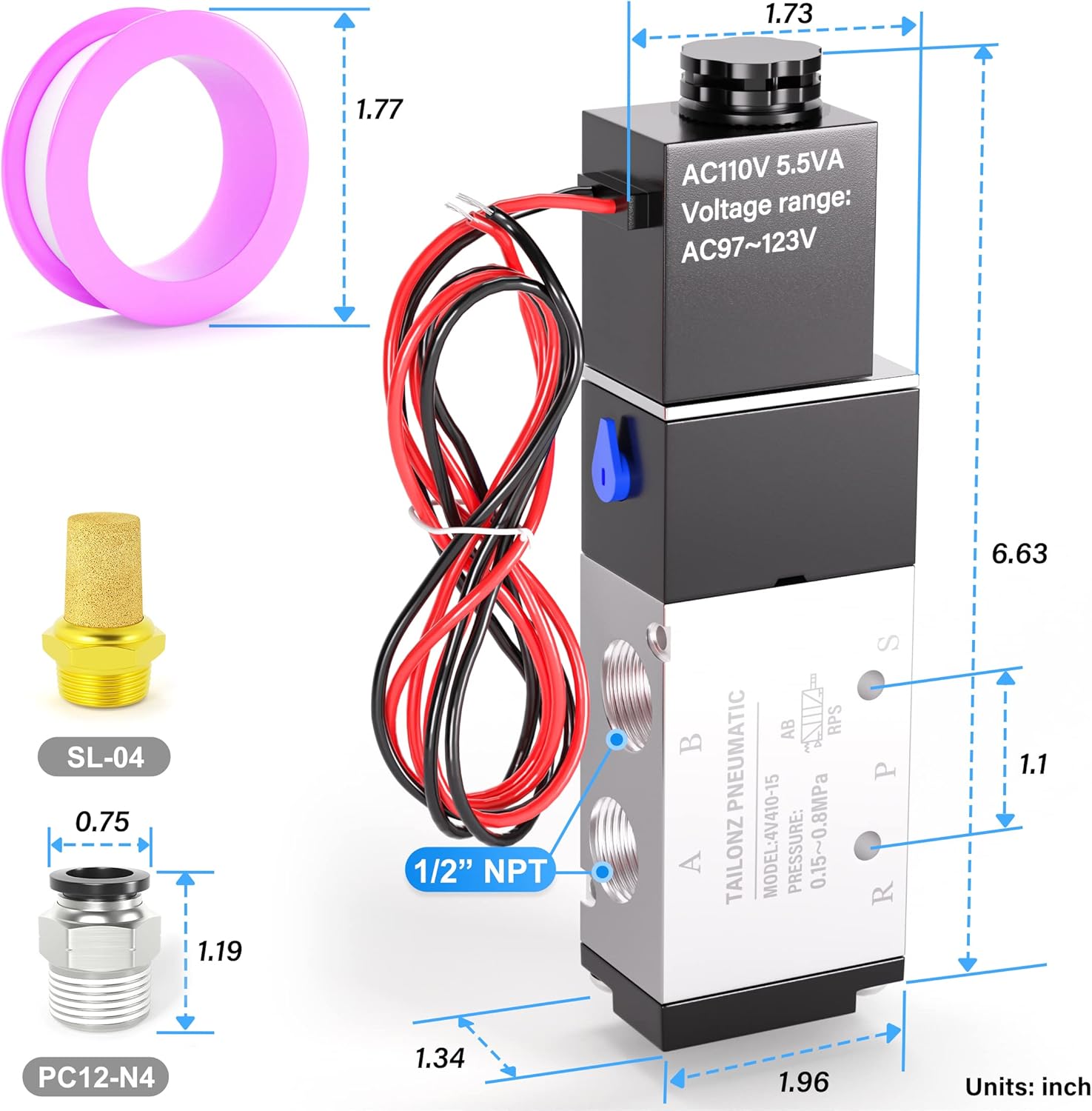

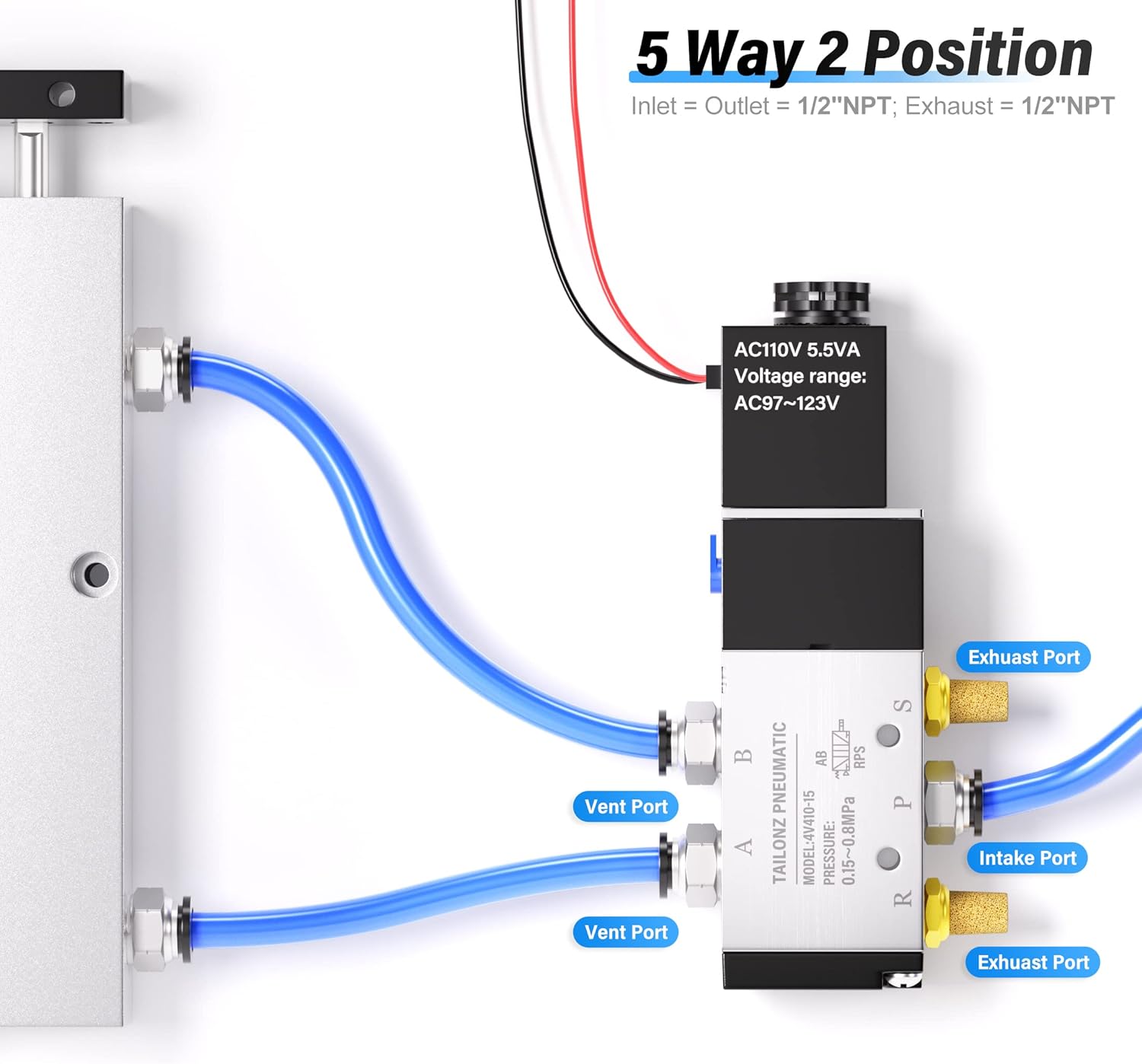

• 【SIze】Outlet Port：1/2"NPT；Inlet Port：1/2"NPT；Exhaust Port：1/2"NPT.We provide pneumatic fittings, which can be used by directly connecting 1/2 or 12mm air tubes.

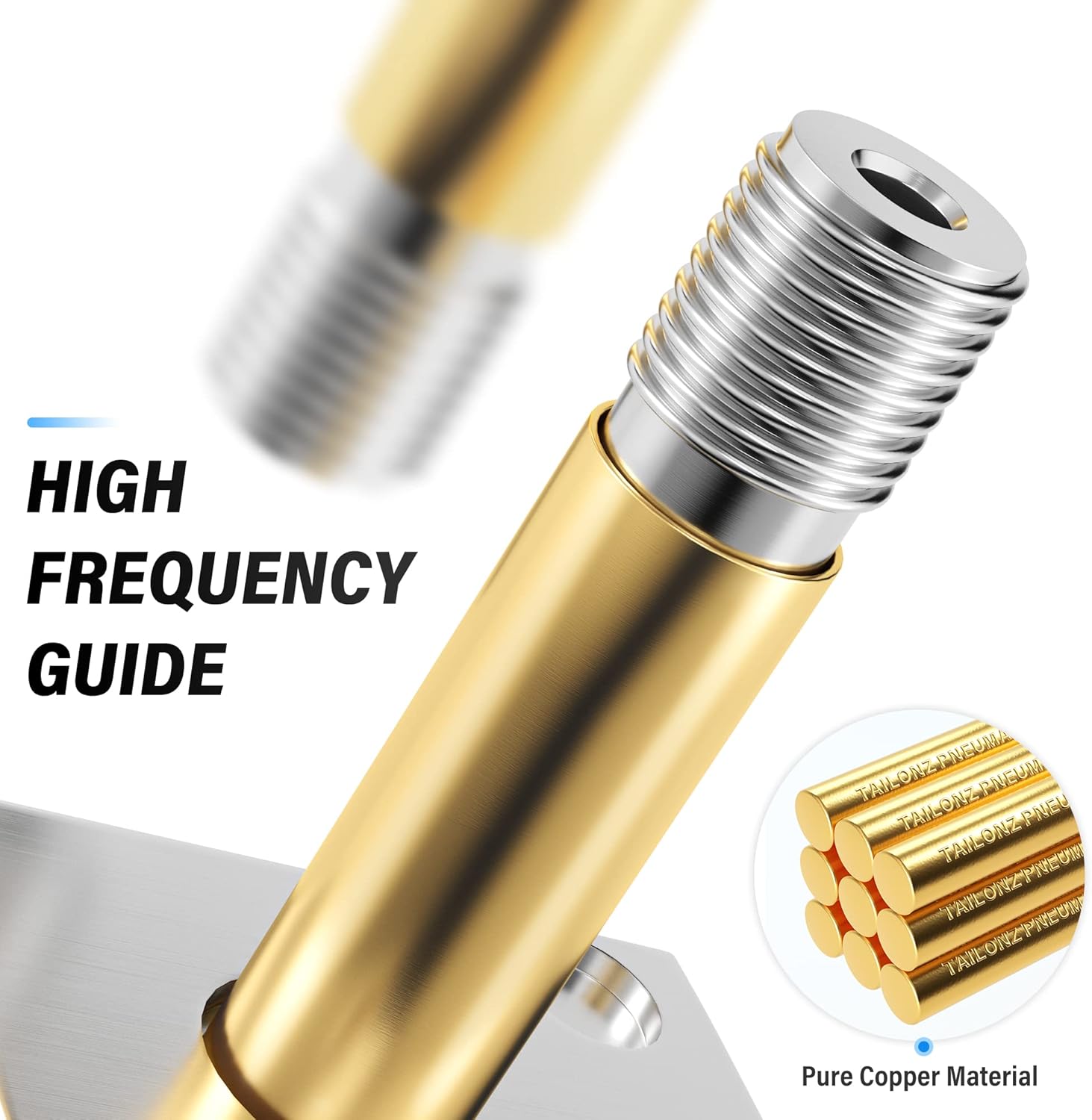

• 【Quick response 】High-quality solenoid valve pilot head, sensitive response, response speed 4 times per second, stable performance.
