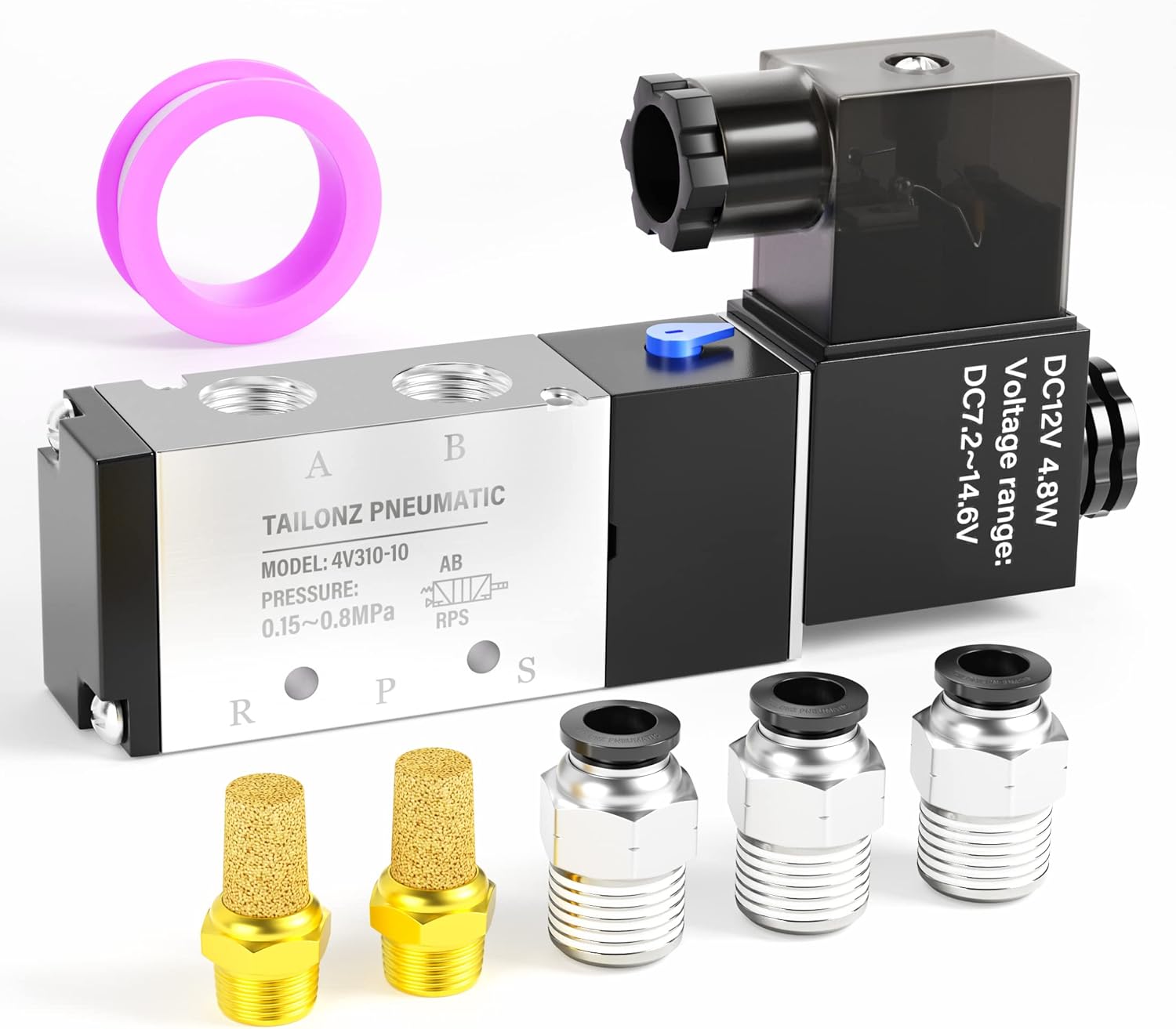

TAILONZ PNEUMATIC 3/8"NPT Solenoid Valve 4V310-10 12V/24V/110V/220V Single Coil Pilot-Operated Electric 2 Position 5 Way Connection Type Junction Box

Overview

• Material : Aluminum
• Brand : TAILONZ PNEUMATIC
• Exterior Finish : Aluminum
• Inlet Connection Size : 3/8 Inches
• Inlet Connection Type : National Pipe Tapered
• Outlet Connection Type : MNPT
• Maximum Operating Pressure : 116 Pound per Square Inch
• Number of Ports : 5
• Outlet Connection Size : 3/8 Inches
• Manufacturer : TAILONZ PNEUMATIC

About this item

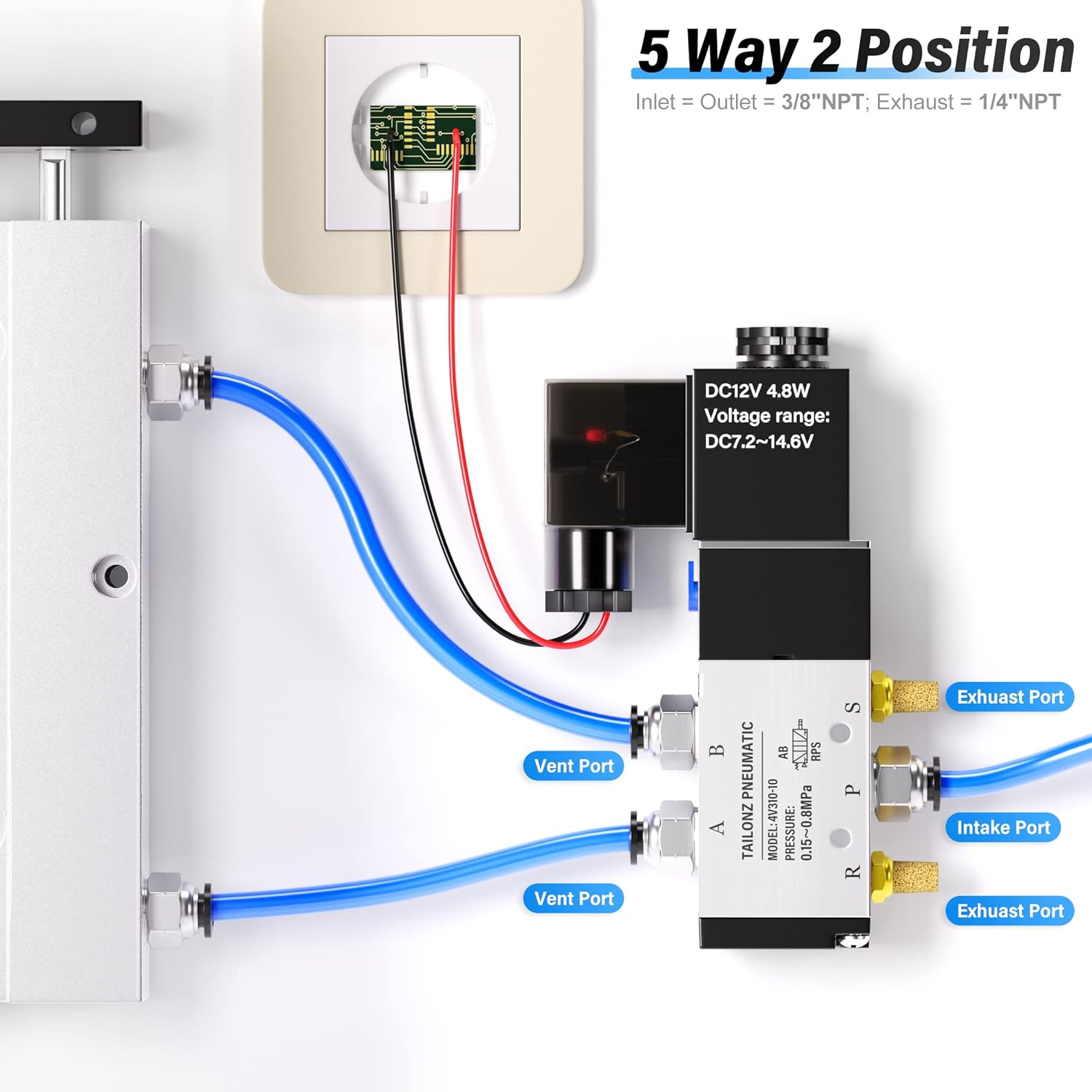

• 【Product Name】2 Position 5 Way Solenoid Valve(Junction Box)
• 【Voltage】DC12V【Working Pressure】25~116Psi
• 【working principle】Valve stays open when the coil is de-energized- and it closes when energized.

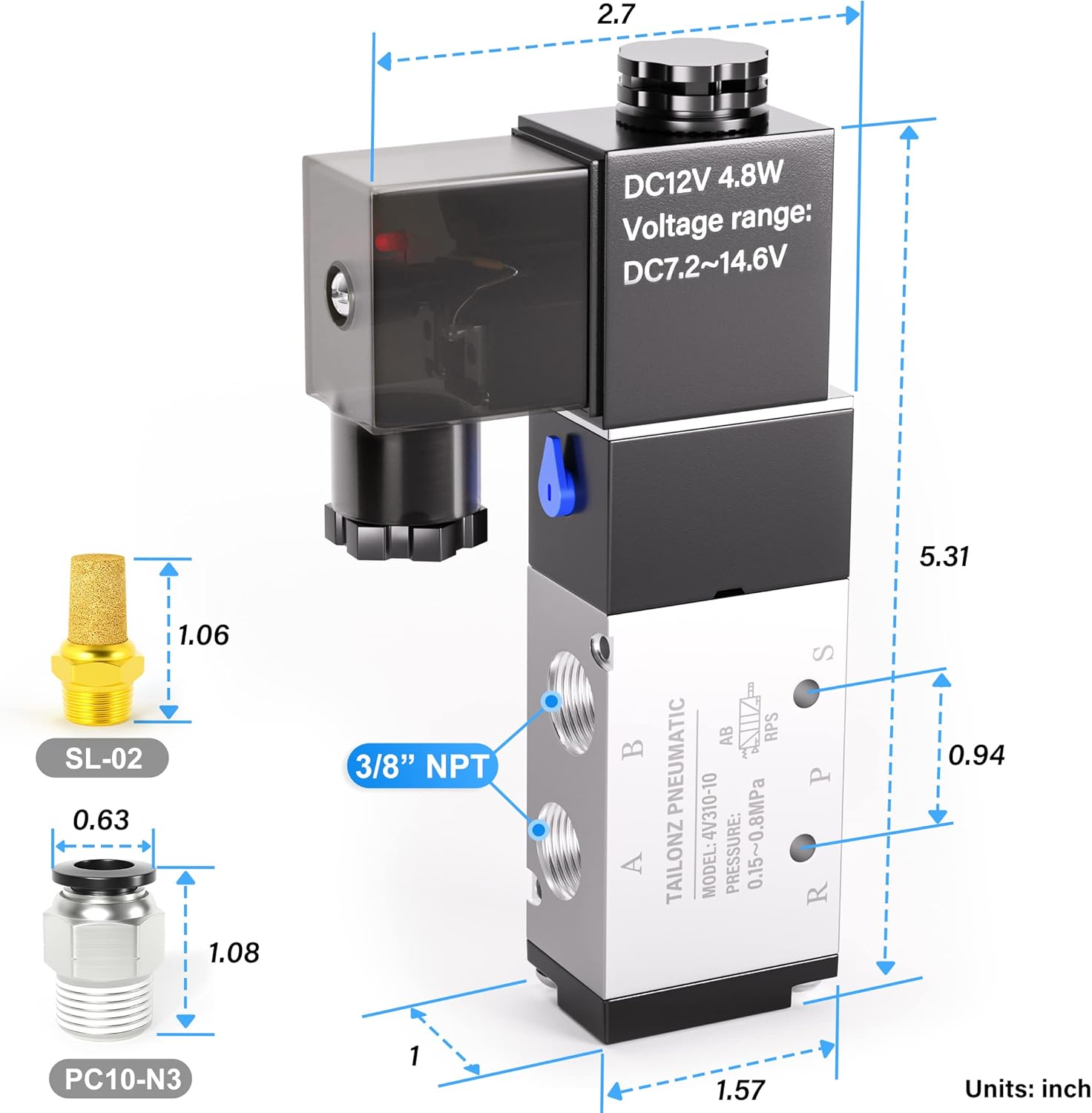

• 【SIze】Outlet Port：3/8"NPT；Inlet Port：3/8"NPT；Exhaust Port：1/4"NPT.We provide pneumatic fittings, which can be used by directly connecting 3/8 or 10mm air tubes.
• 【Quick response 】High-quality solenoid valve pilot head, sensitive response, response speed 4 times per second, stable performance.
