$14.38

Overview

  • Connector Type : Screw
  • Contact Material : Silver Alloy
  • Contact Type : Normally Closed
  • Current Rating : 10 Amps
  • Mounting Type : [Panel Mount or Surface Mount]

About this item

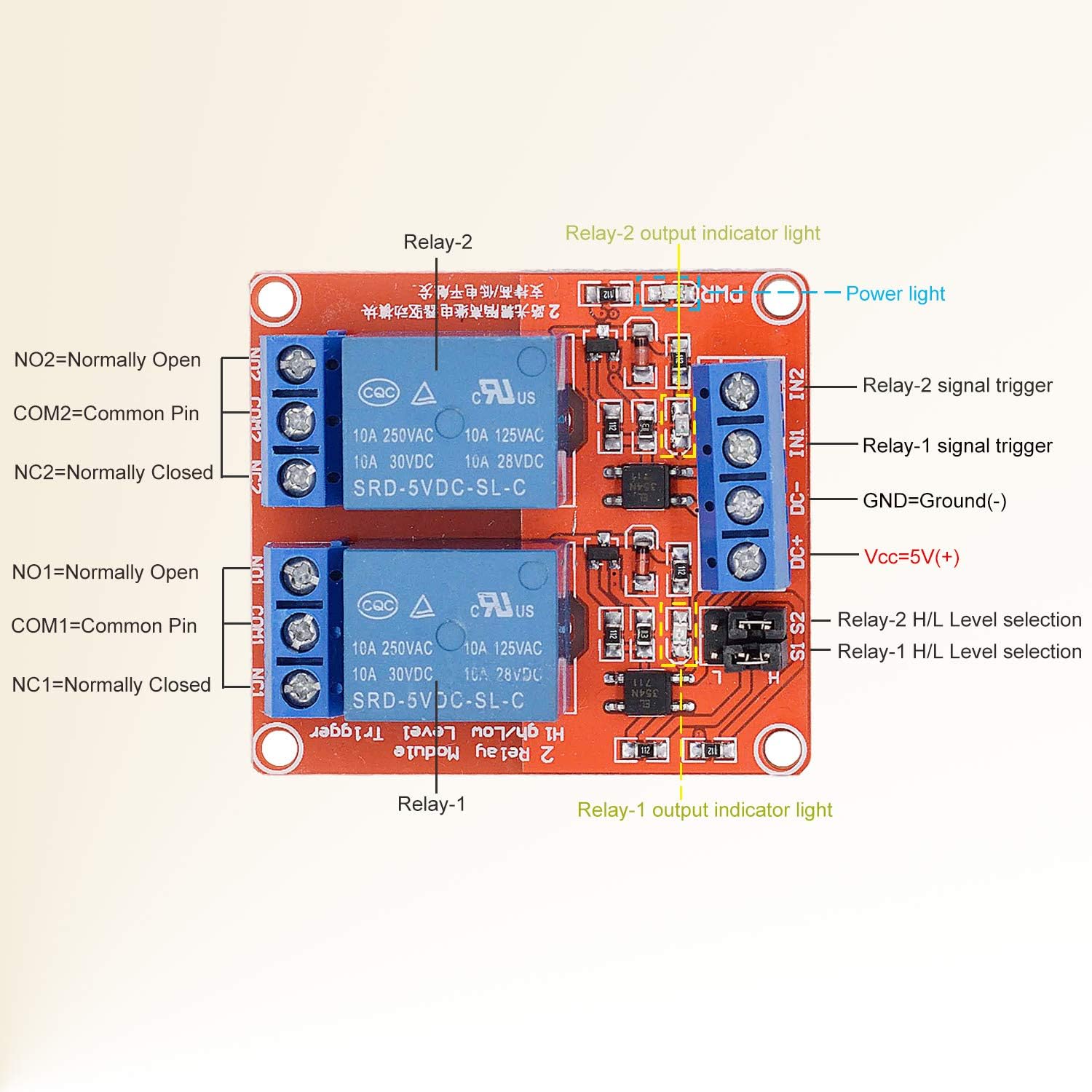

  • 【Control Devices】The 2-channel relay module uses genuine high quality DC5V relay and SMD opto-isolator supporting high/low level trigger, widely apply to control various AC/DC appliances, and other devices with large current.
  • 【Load Range】NO(Normally open) maximum load < AC 250V/10A, < DC 30V/10A. Trigger current of opto-isolator: 5mA.
  • 【Fault-tolerant Design】The relay will not operate even if the control line is disconnected.

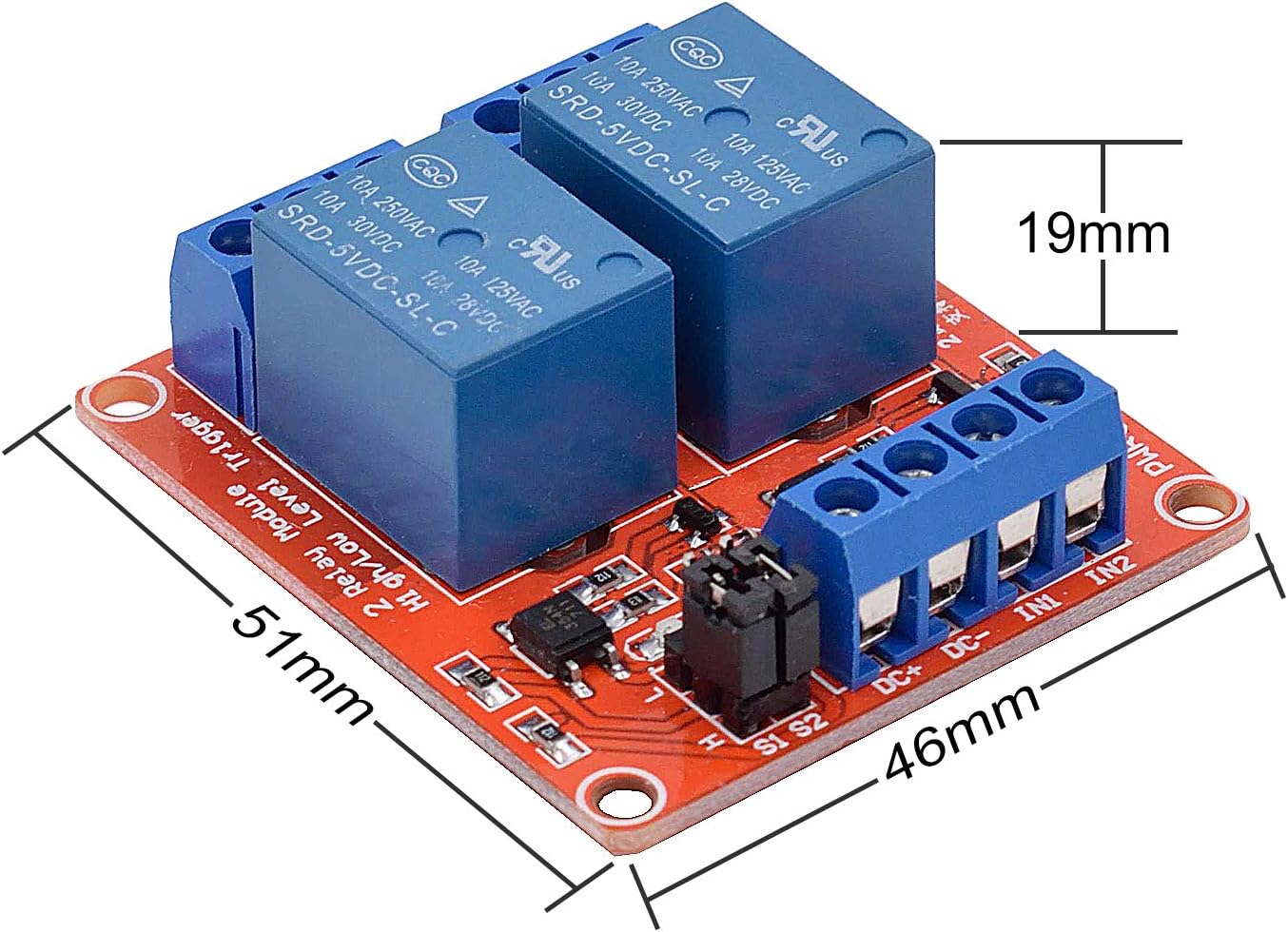

  • 【Universal Interface】Equipped with screwed terminal plate and fixed bolt holes(diameter: 3.1 mm) on both sides for easy installation.
  • 【High Compatibility】The relay module can be controlled directly by 5V logic signals from microcontroller(8051, AVR, PIC, DSP, ARM, Pi, MSP430, TTL logic etc).
