MATRIX LCR Meter, Capacitance Meter 40Hz-100kHz, Inductance Meter Accuracy 0.1%, Digital Multimeter with 32-Bit Core Processor, Electronic Component Tester 30Ω/100Ω Two Output Resistance, MCR-5100

Overview

• Brand : MATRIX
• Power Source : Corded Electric
• Style : 40Hz-100kHz
• Color : White
• Item Weight : 10.58 Pounds

About this item

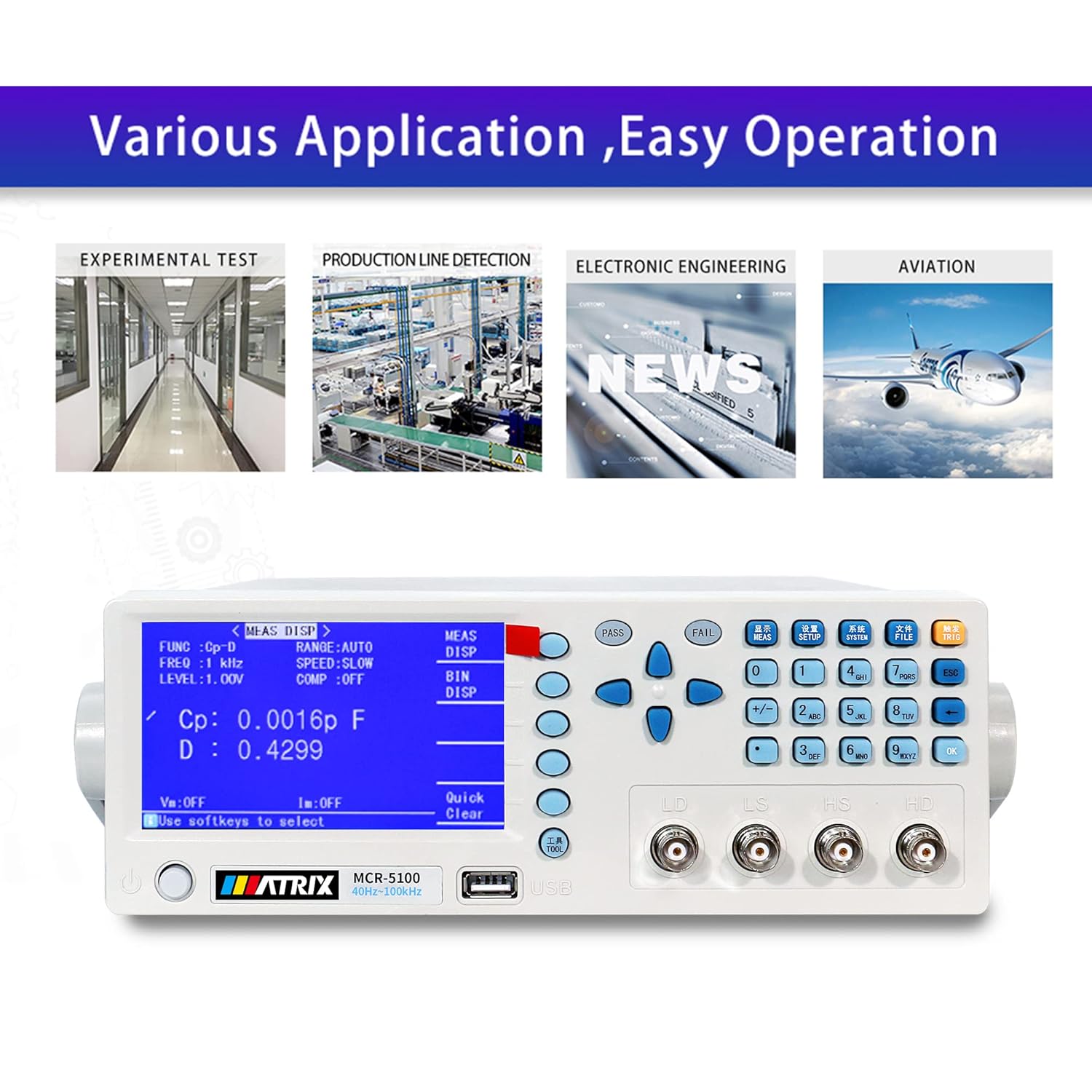

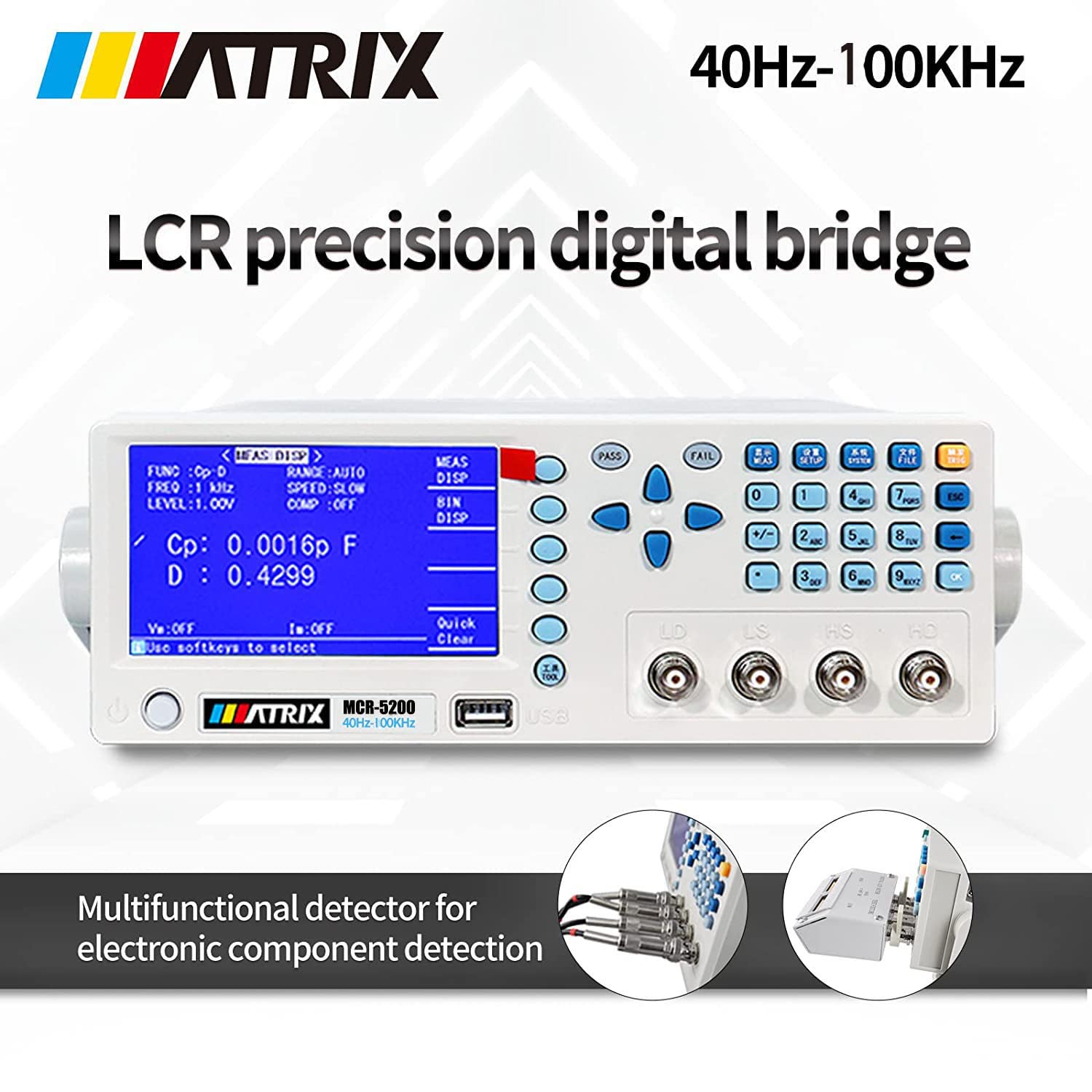

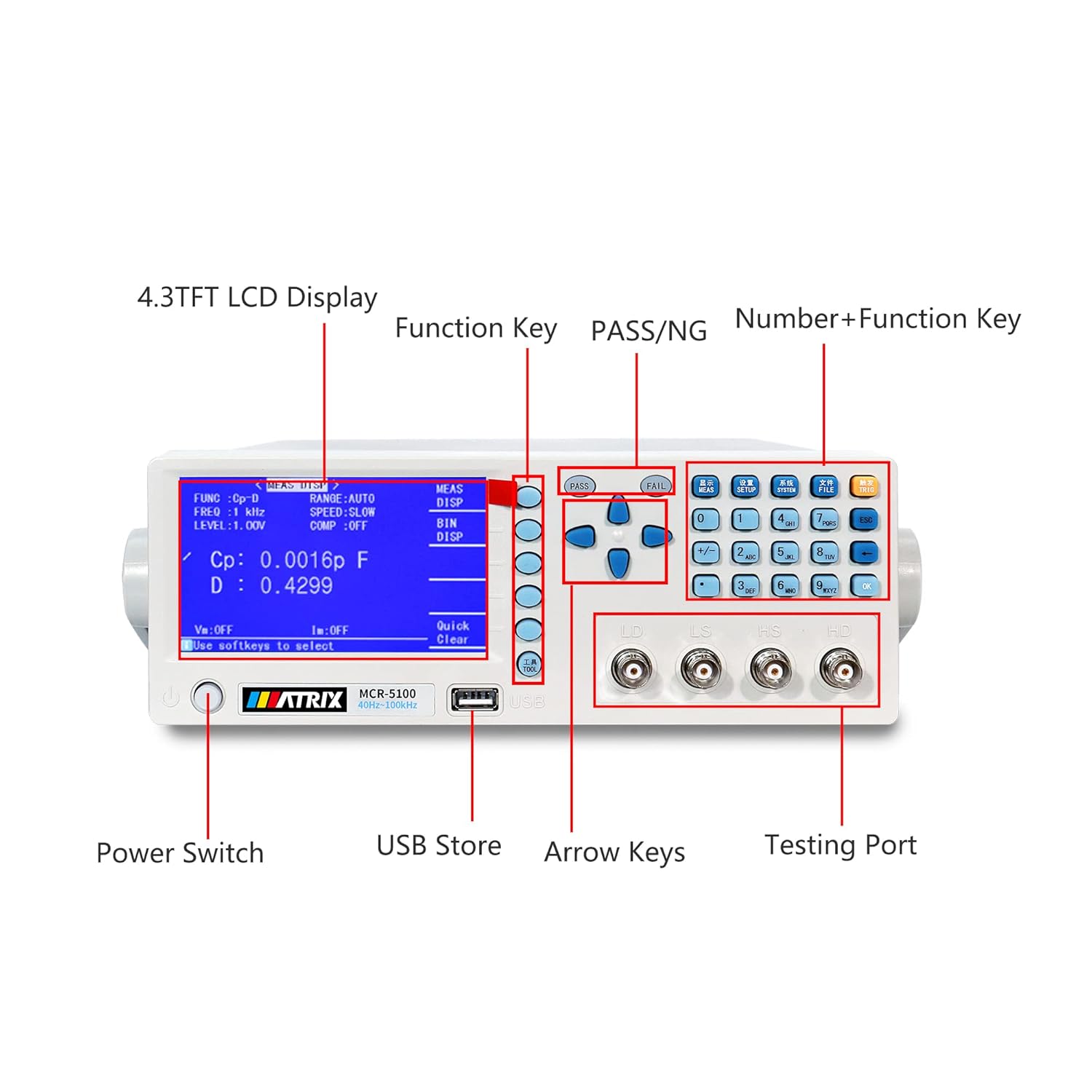

• [PRECISION BENCH LCR METER] MATRIX high precision LCR meter MCR-5100 is a compact bench-type professional LCR meter with a 4.3-inch TFT LCD display. The LCR meter test frequency ranges from 40Hz to 100kHz, basic test accuracy is 0.1%, and a 5-digit test resolution impedance meter instrument meets the testing needs of various components and parameters.
• [EASY TO USE] The capacitance meter tester with the new 32-bit core processor, test parameters L, C, R, lZl, D, Q, X, ESR, θ(Deg), θ(Rad). 30Ω,100Ω two different signal source output impedance. Benchtop inductance meter built-in comparator, 5-grade flexible qualified, and defective alarming mode shutdown automatically saves test conditions, and humanized operation.
• [PRODUCT FEATURE] MATRIX digital electronic component tester instrument internal more than 100 sets of settings files, U disk extension to save multiple groups of the test or recall simplified Chinese, English is optional. And the LCR meter supports the format FAT16, and FAT32 file systems.
• [38 TEST FREQUENCY POINTS] 40Hz, 50Hz, 60Hz, 75Hz, 100Hz, 120Hz, 150Hz, 200Hz, 250Hz, 300Hz, 400Hz, 500Hz, 600Hz, 750Hz, 800Hz, 1kHz, 1.5kHz, 2kHz, 2.5kHz, 3kHz, 4kHz, 5kHz, 6kHz, 7.5kHz, 10kHz, 12kHz, 15kHz, 15.7kHz, 16.2kHz, 20kHz, 25kHz, 30kHz, 40kHz, 50kHz, 60kHz, 66.6kHz, 75kHz, 100KhZ in total of 38 frequency points.

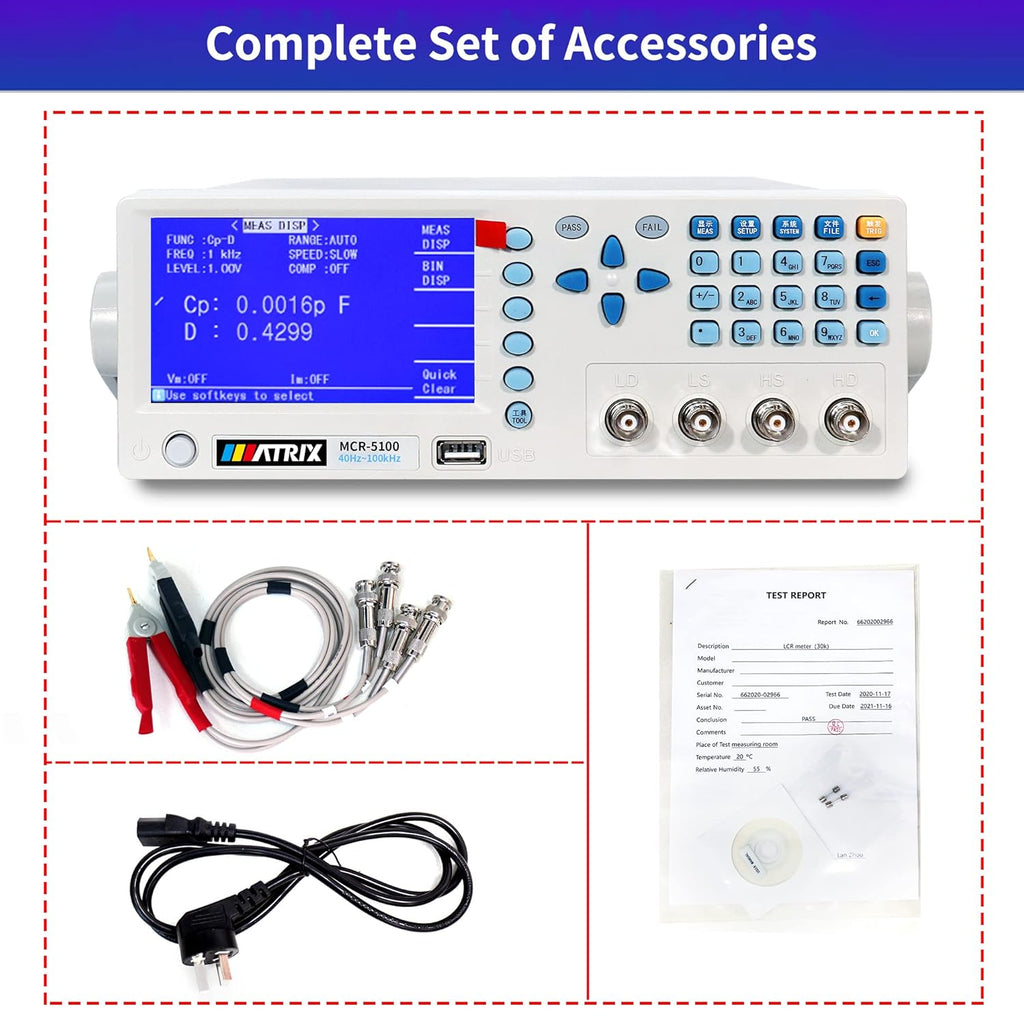

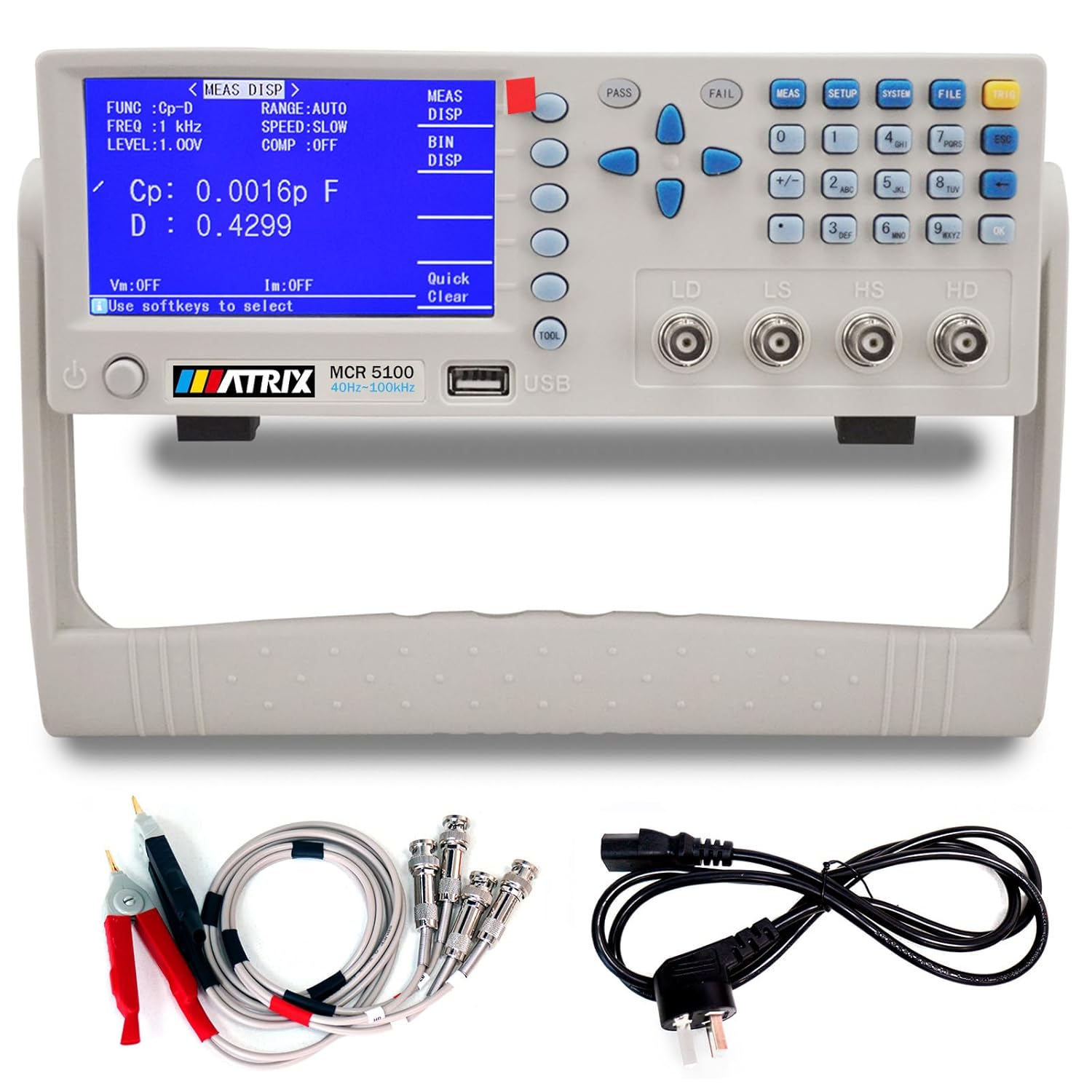

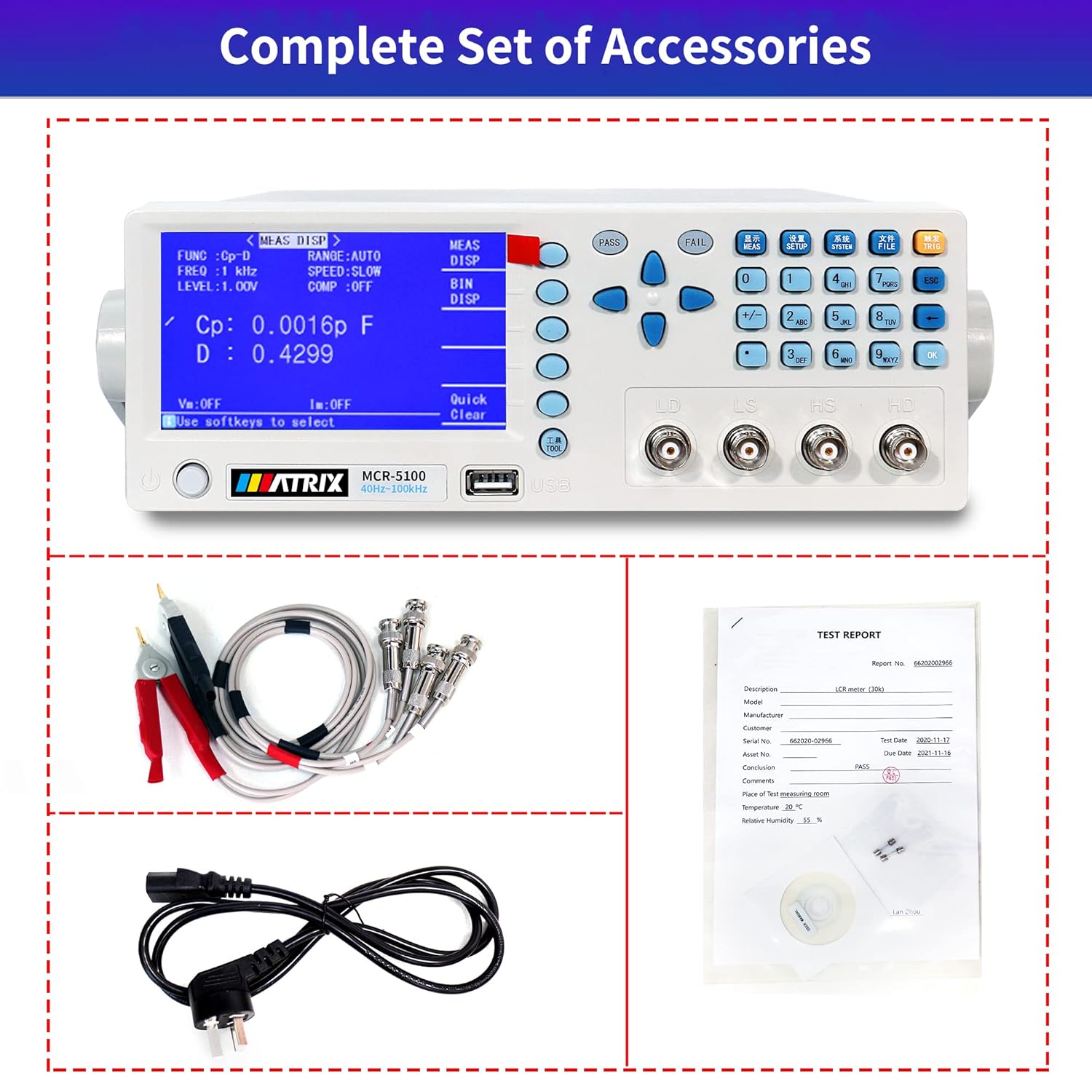

• [QUALITY CHECK] Buy precision LCR bridge meter, you will get 1* Benchtop LCR Meter, 1* Power Cord, 1* Four-terminal Test Cord, 1* CD, 1* Test Report, 1* User Manual, 1 * Fuse table. The LCR meter digital can be used for test passive components, such as incoming inspection, and the production and sorting of passive components.
