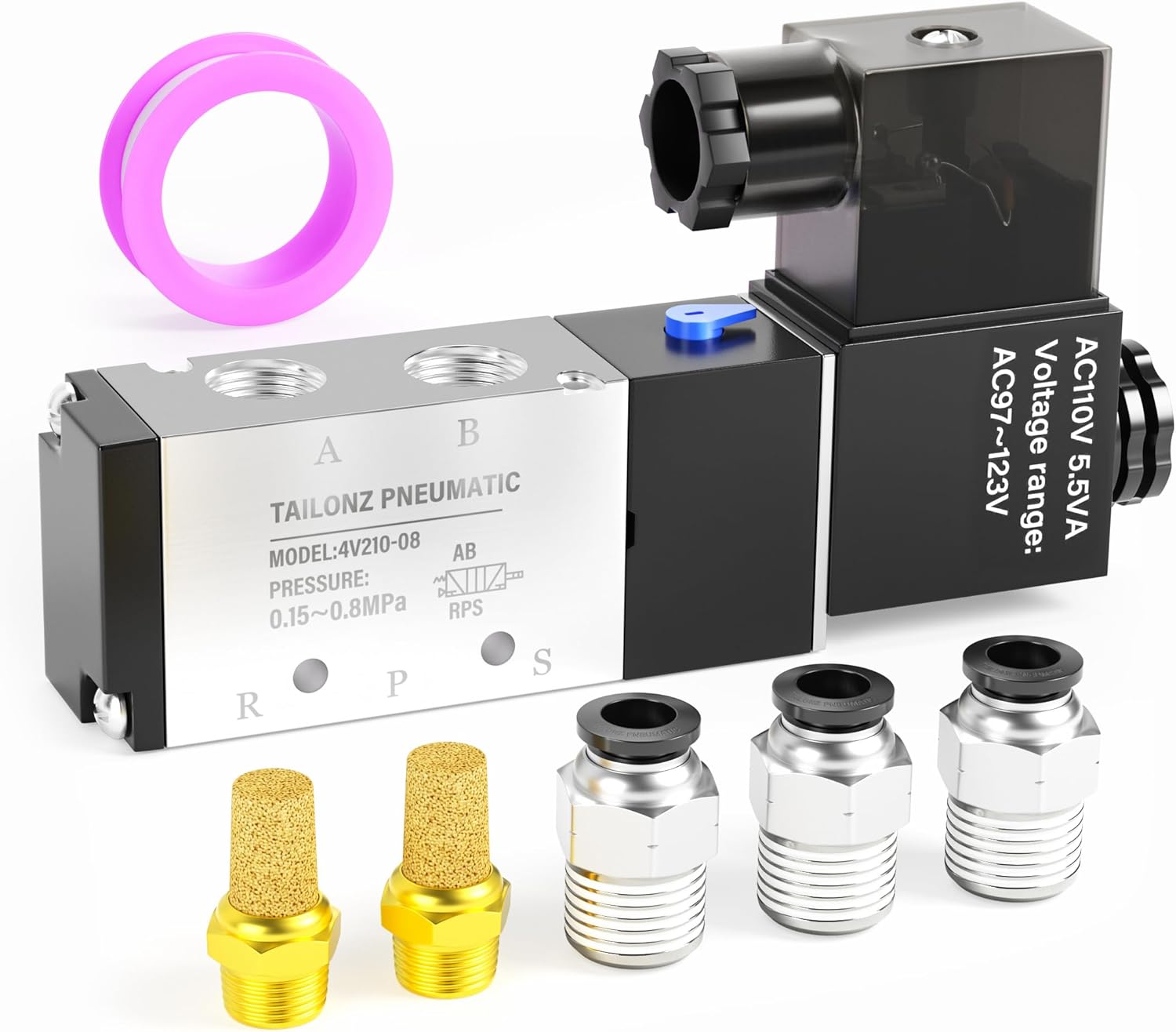

TAILONZ PNEUMATIC 1/4"NPT Solenoid Valve 4V210-08 AC110V Single Coil Pilot-Operated Electric 2 Position 5 Way Connection Type Junction Box

Overview

• Material : Aluminum
• Brand : TAILONZ PNEUMATIC
• Exterior Finish : Aluminum
• Inlet Connection Size : 1/4 Inches
• Inlet Connection Type : National Pipe Tapered
• Outlet Connection Type : NPT Thread
• Maximum Operating Pressure : 116 Pound per Square Inch
• Number of Ports : 5
• Outlet Connection Size : 1/4 Inches
• Manufacturer : TAILONZ PNEUMATIC

About this item

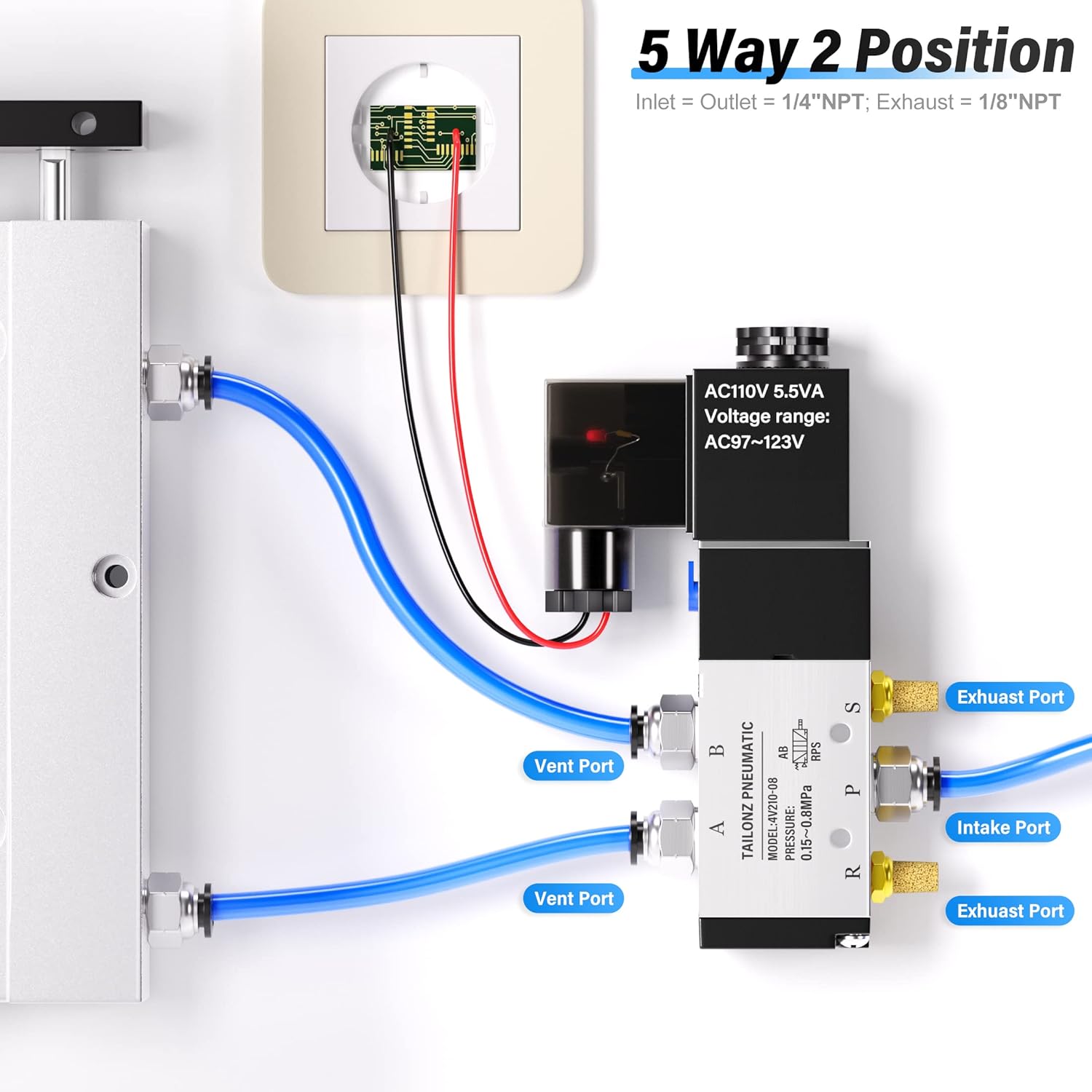

• 【Product Name】2-Position 5-Way Solenoid Valve(Junction Box)
• 【Voltage】AC110V【Working pressure】25~116℉【Working Temperature】32-140℉
• 【Working Principle】When the coil is powered off, the valve stays open - when powered on, it closes.

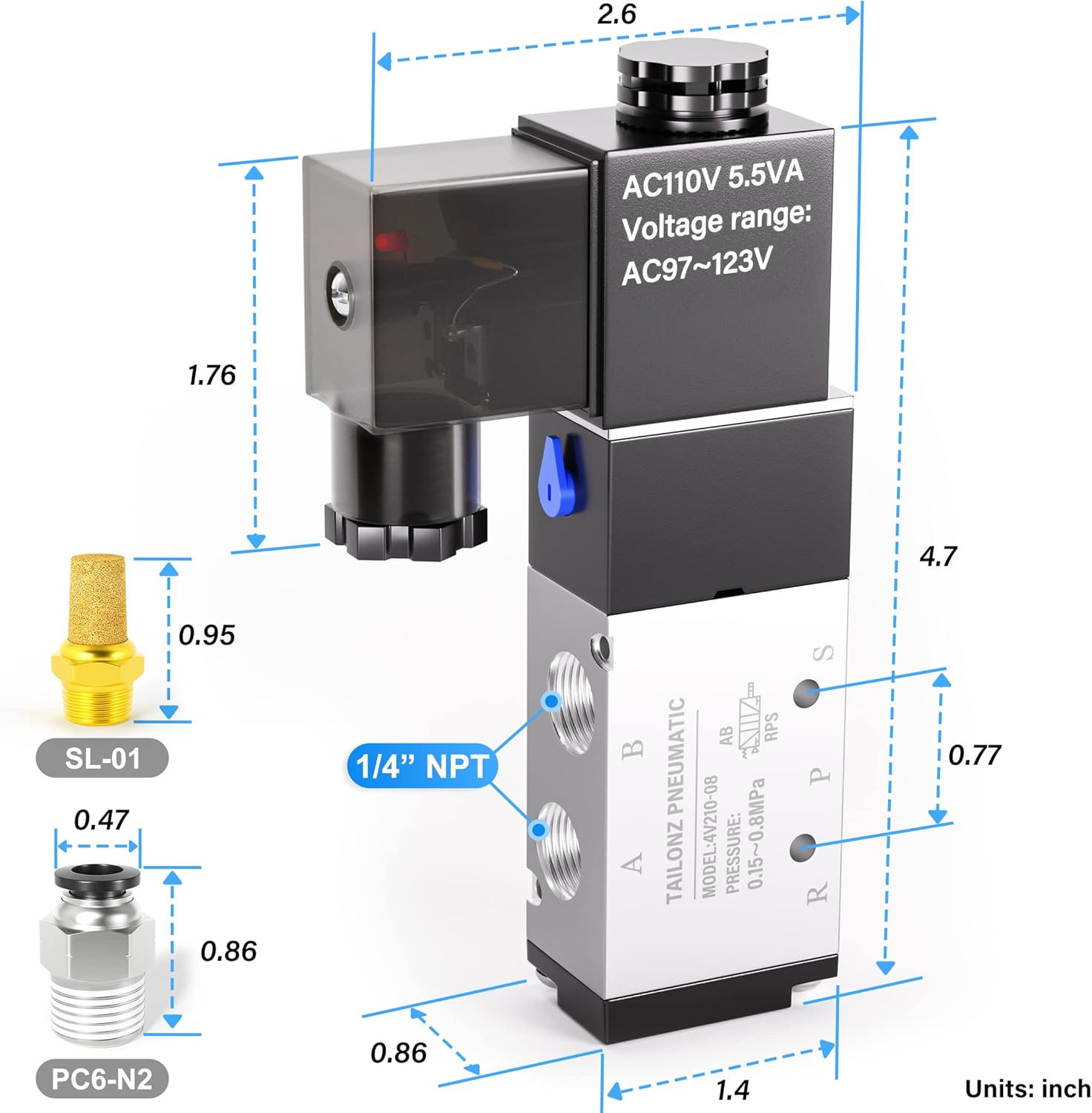

• 【Size】Outlet port: 1/4 inch (about 0.6 cm) NPT; Inlet port: 1/4 inch (about 0.6 cm) NPT; Exhaust port: 1/8 inch (about 0.6 cm) NPT; We provide pneumatic fittings for direct connection to 1/4 or 6mm air hose.
• 【Fast response】High quality solenoid valve guide head, sensitive response, response speed 4 times per second, stable performance.
