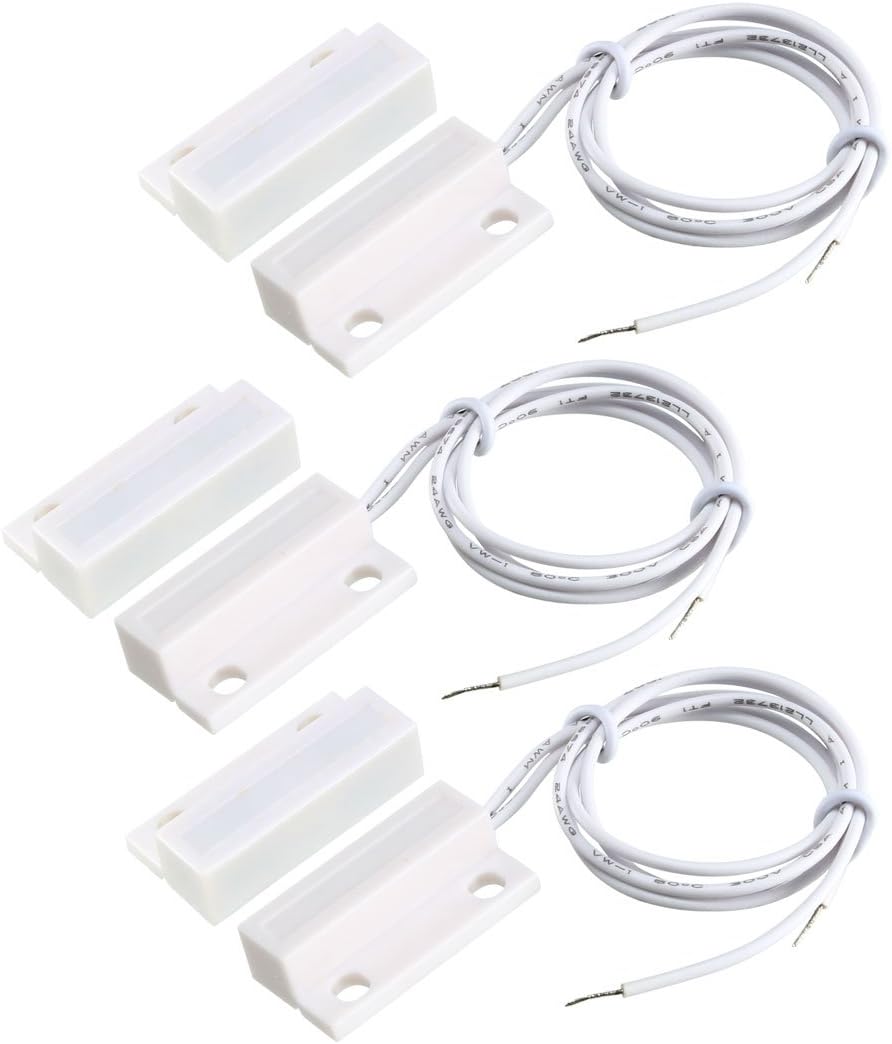

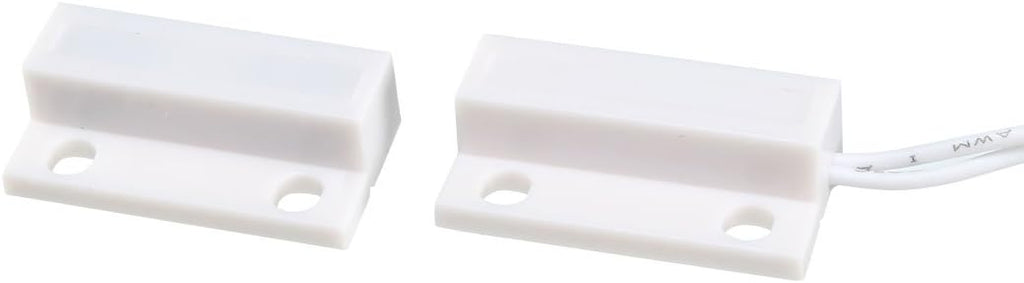

uxcell Surface Mount Wired NC Door Sensor Alarm Magnetic Reed Switch White MC-38

Overview

• Operation Mode : ON-NONE-OFF
• Current Rating : 0.5 Amps
• Operating Voltage : 100 Volts (DC)
• Contact Type : Normally Closed
• Connector Type : Wire Leads
• Brand : uxcell
• Switch Type : Magnetic Reed Switch (Normally Closed)
• Terminal : Screw
• Material : Acrylonitrile Butadiene Styrene
• Item dimensions L x W x H : 5.51 x 3.94 x 0.39 inches

About this item

• [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 10~15mm

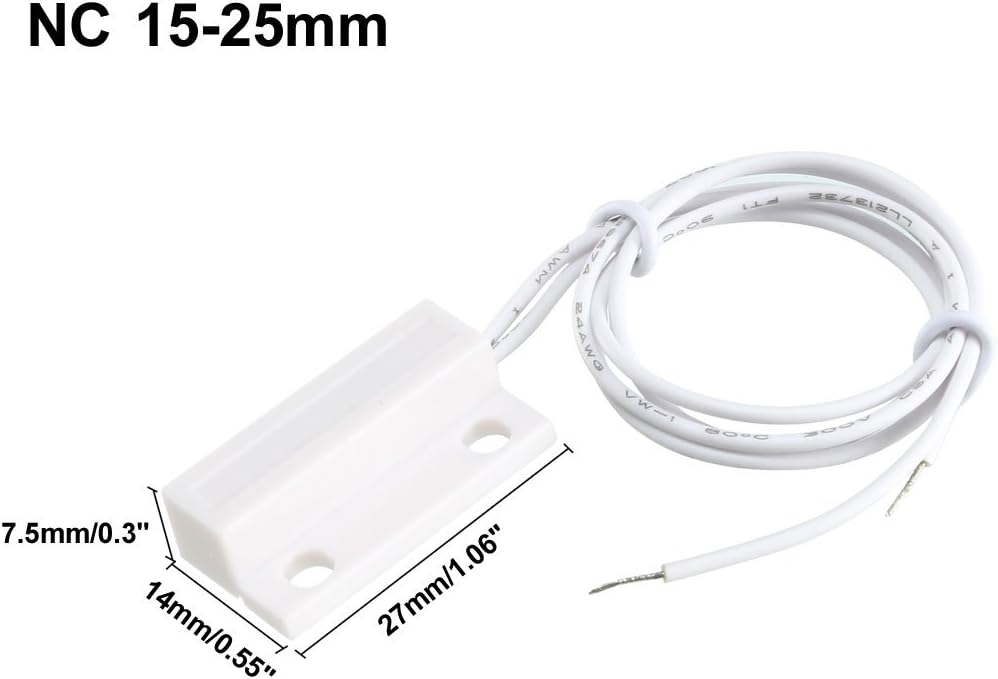

• [Dimension] - Cable Length: 26cm/10.24"; Total Size: 27 x 14 x 7.8mm / 1.06" x 0.55" x 0.31" (L*W*H)
• [Material] - The magnetic switch alarm is with durable ABS housing for better rust resistance
• [Normally Closed] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off )
• [Applications] - The Wired Door Sensor is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.
