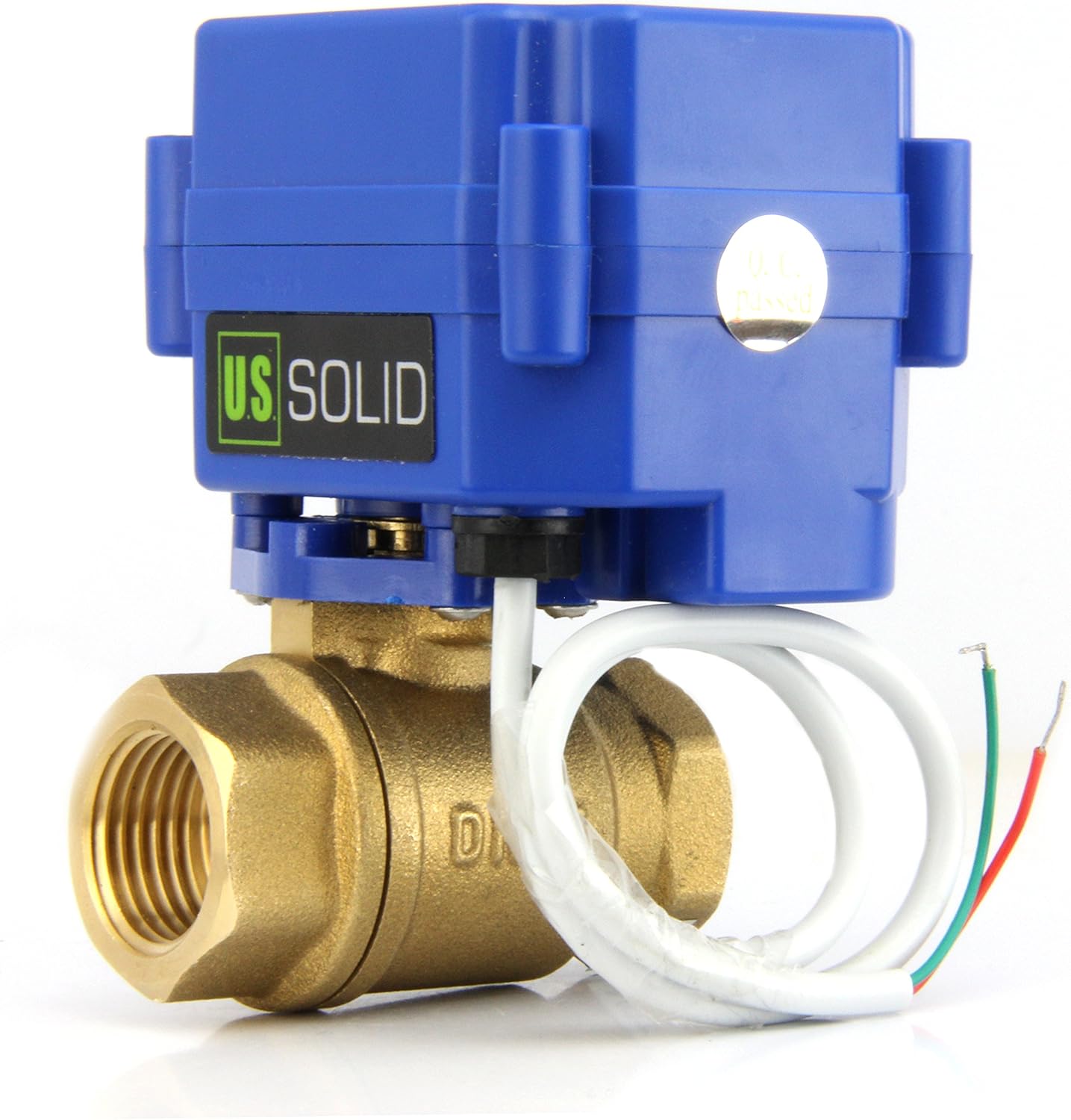

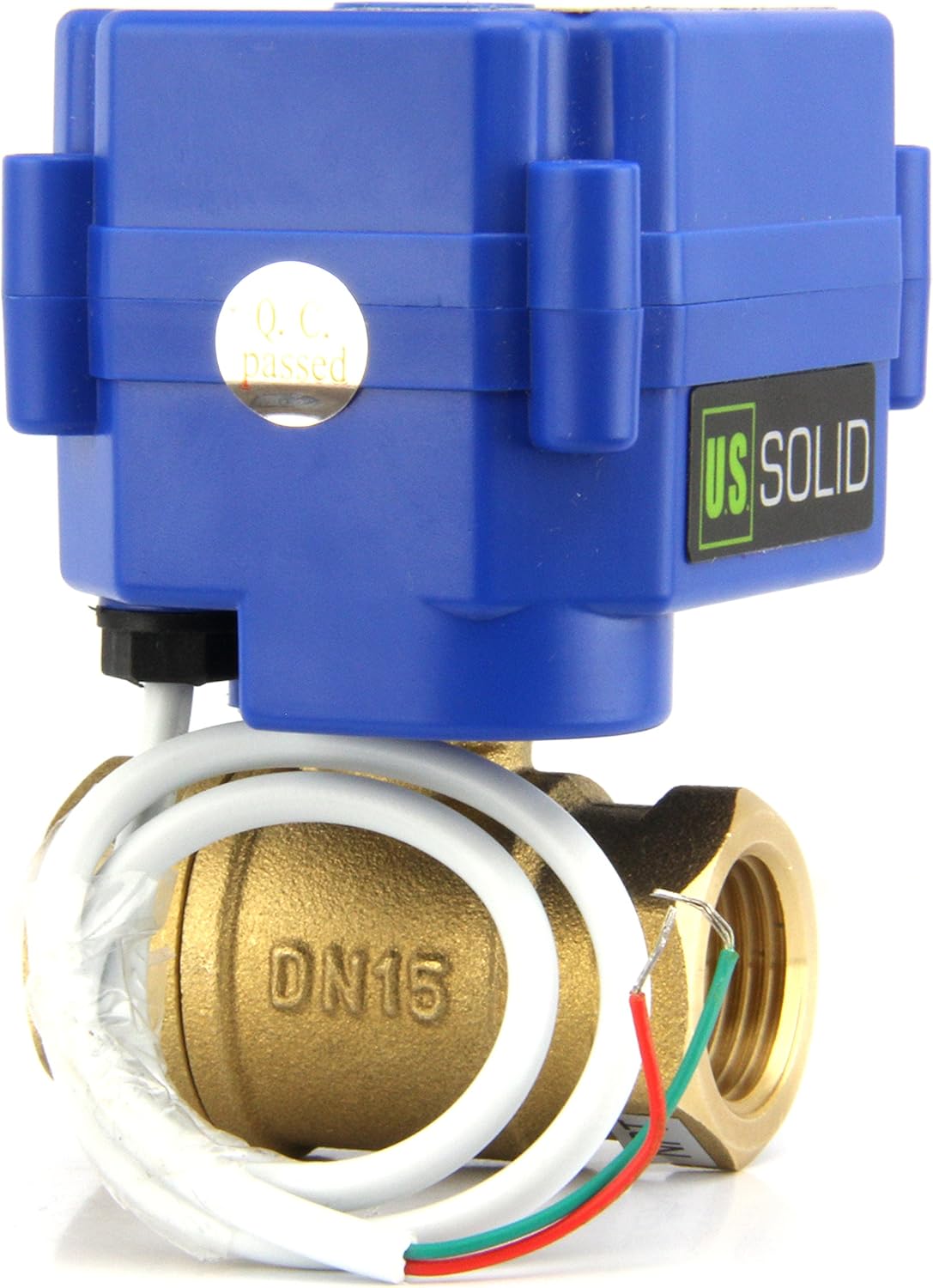

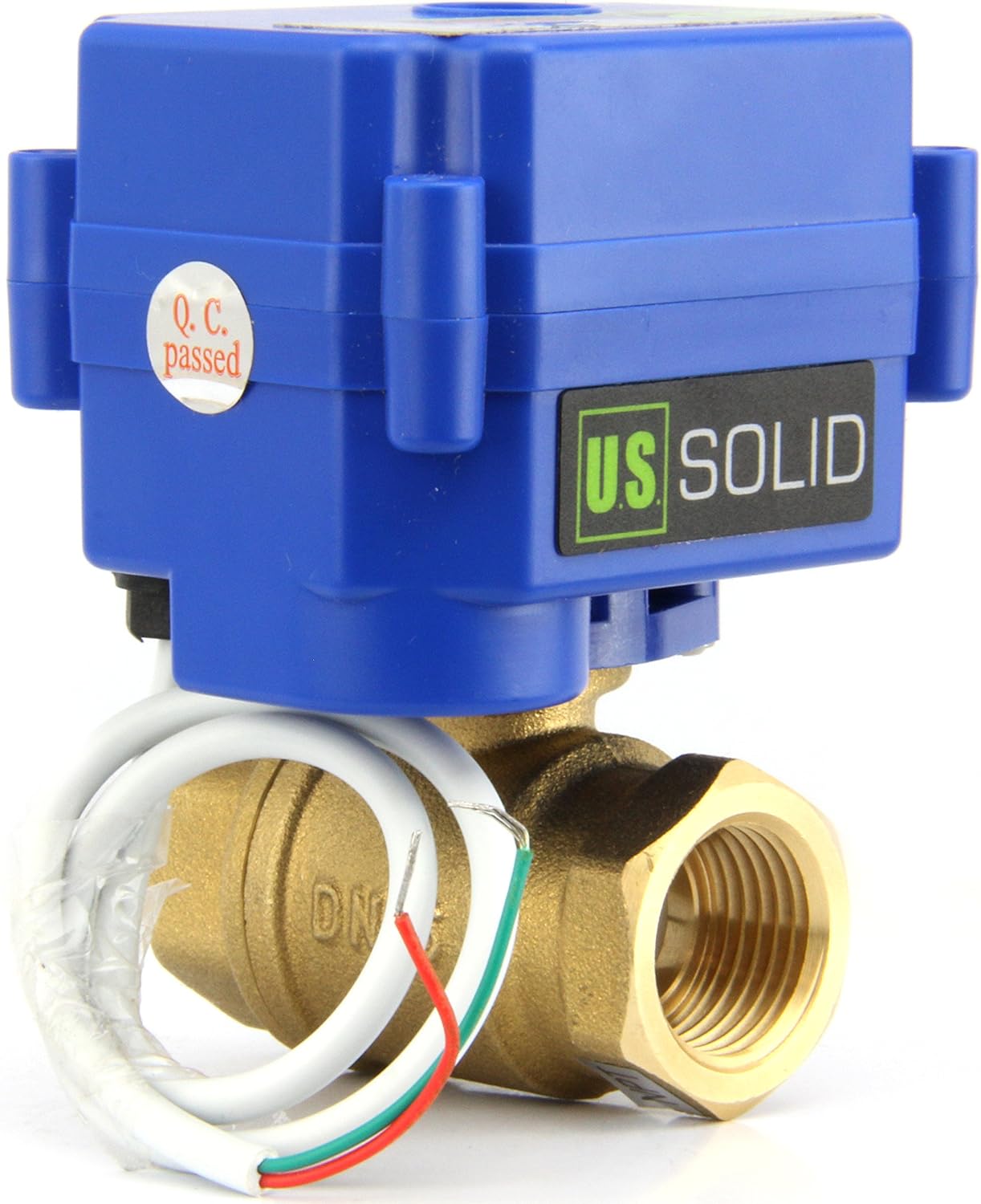

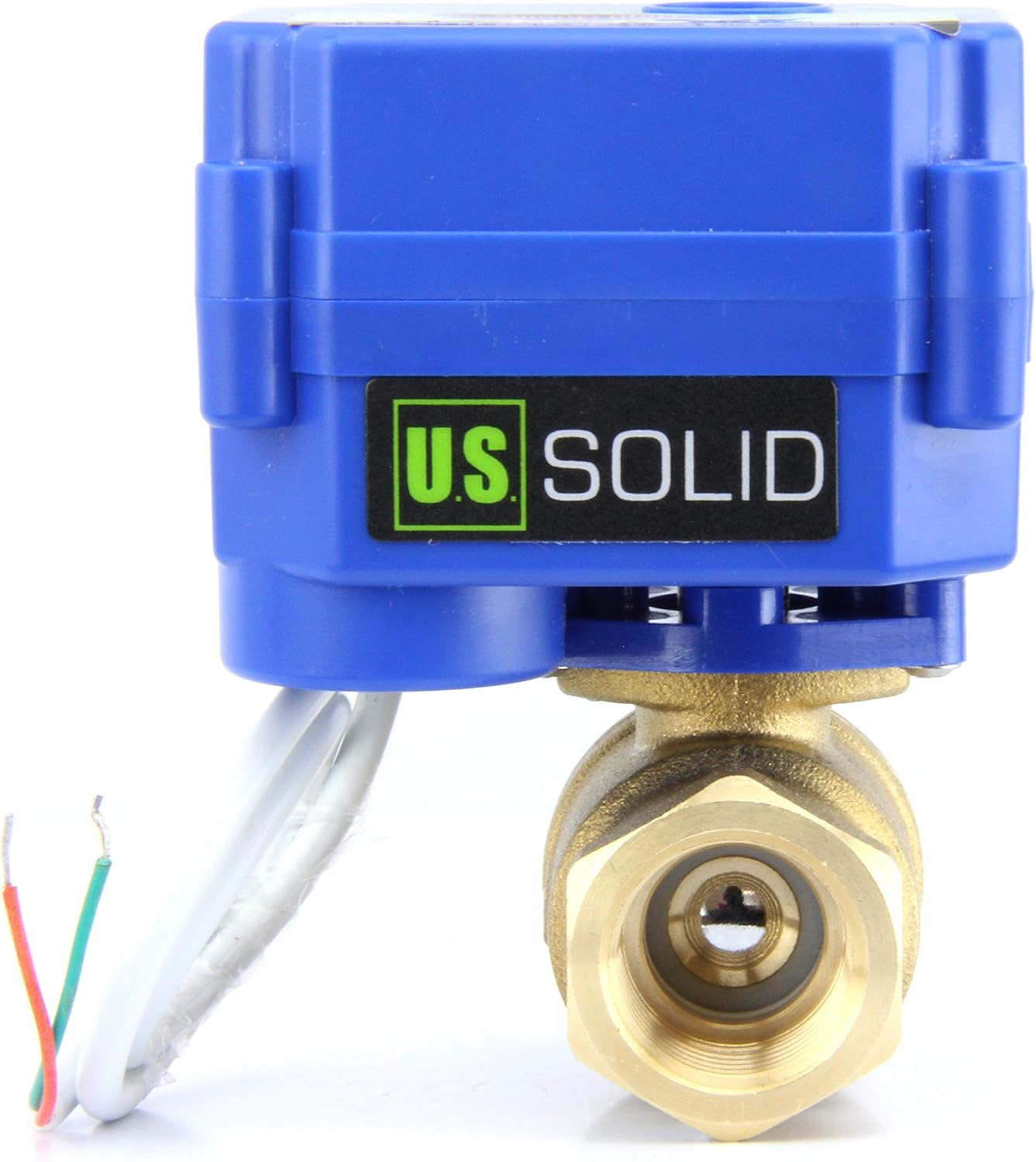

U.S. Solid Motorized Ball Valve- 3/4" Brass Ball Valve with Standard Port, 9-24V AC/DC and 2 Wire Auto Return Setup

Overview

• Material : Stainless Steel
• Brand : U.S. Solid
• Exterior Finish : Brass
• Inlet Connection Size : 0.75 Inches
• Inlet Connection Type : National Pipe Tapered
• Outlet Connection Type : NPT
• Maximum Operating Pressure : 1000 Kilopascal
• Number of Ports : 2
• Outlet Connection Size : 0.75 Inches
• Specification Met : IP65

About this item

• SAFE AND RELIABLE- Comprised of brass this valve is safe and strong; Lifespan of 80,000-100,000 cycles means a valve that will last

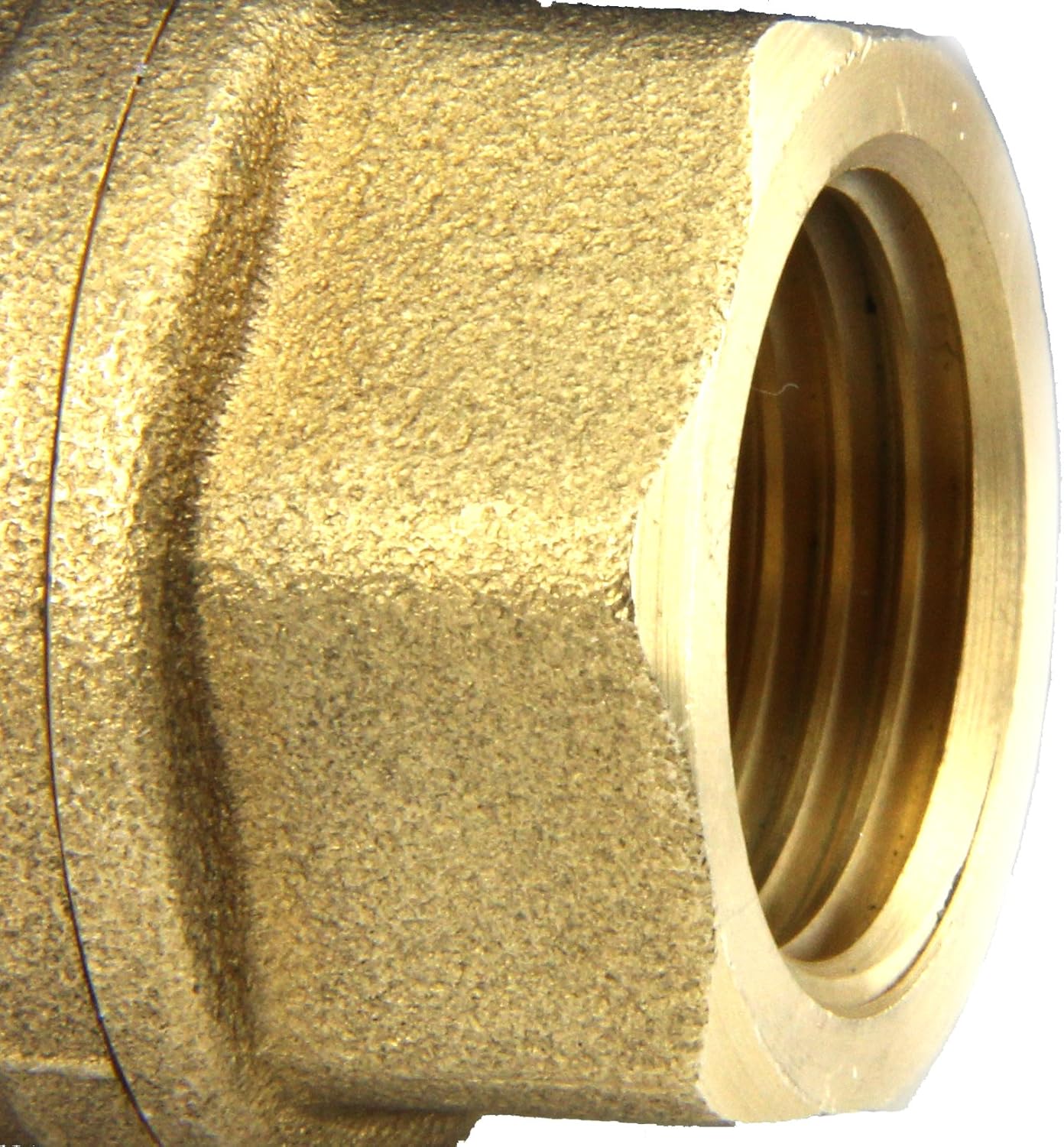

• NPT THREADING-3/4” Brass threading, manufactured and measured according to National Pipe Thread standards; This electrical ball valve is standard port, meaning the bore in the ball is a little less than 3/4”; This minimizes pressure loss through the valve; Perfect for home automation projects
• 9V-24V AC/DC- Works effectively over entire voltage range; Will open or close valve in 3-5 seconds; Limit switch minimizes power after valve is fully open; Ideal for projects where an automatic return is necessary
• 2 WIRE AUTOMATIC RETURN SETUP- Simple two wire connection, valve largely de-energizes after opening; Returns to fully closed if power is removed
• ALTERNATIVE TO SOLENOID VALVES- Automatically cuts off power once fully open or fully closed; This reduces likelihood of overheating, making it a great alternative to solenoid valves for projects where a valve needs to be open for an extended period of time
