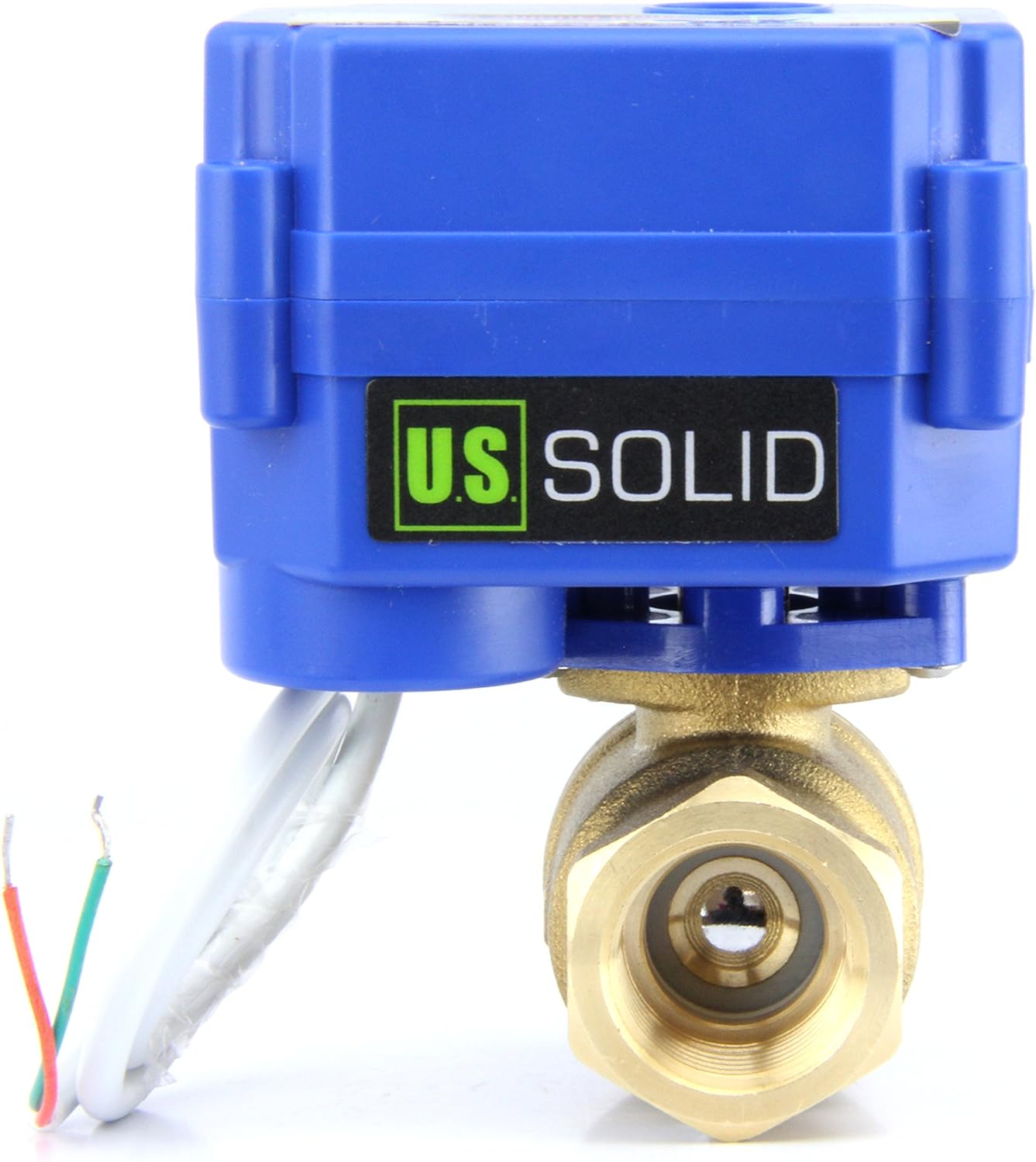

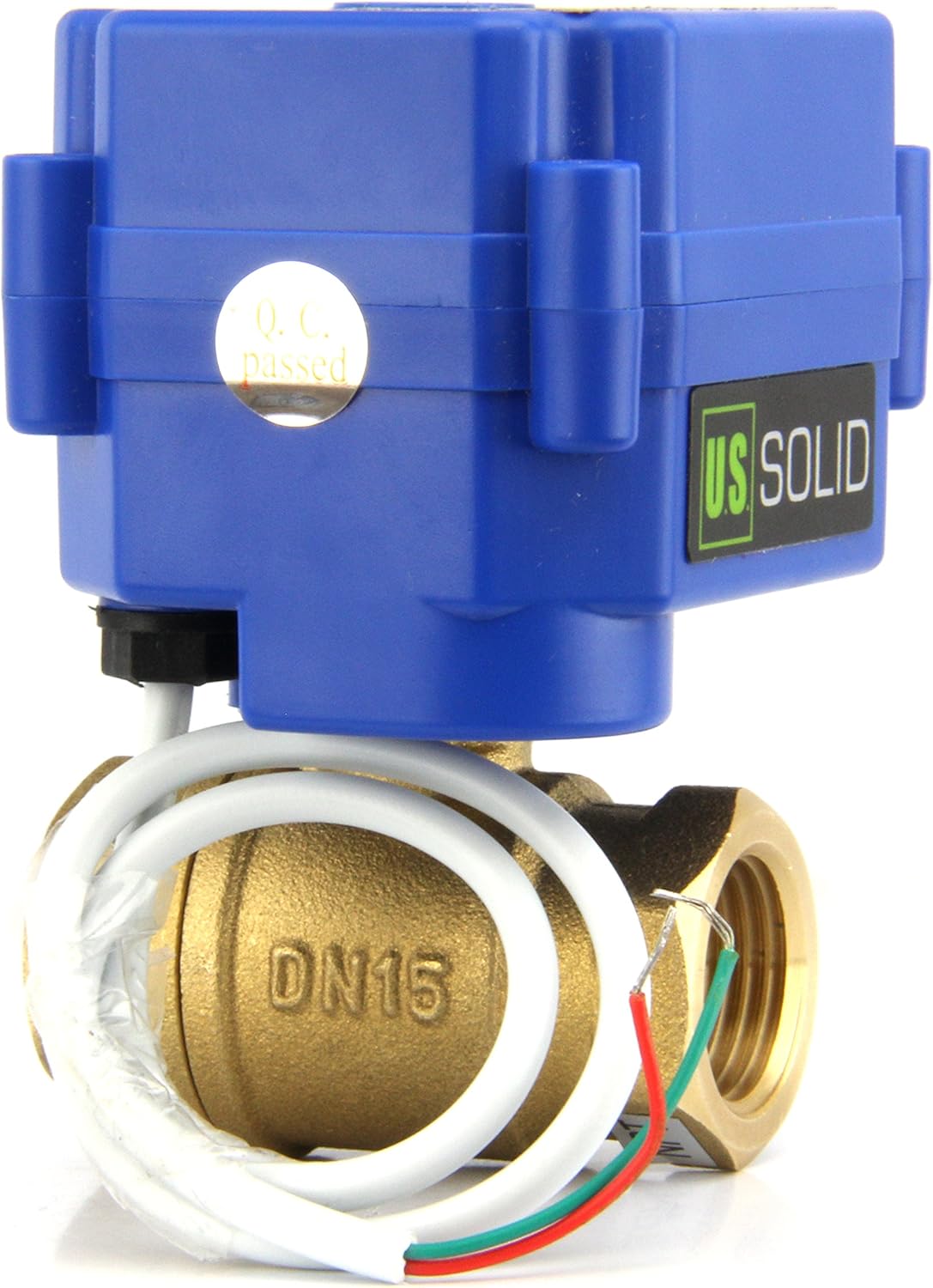

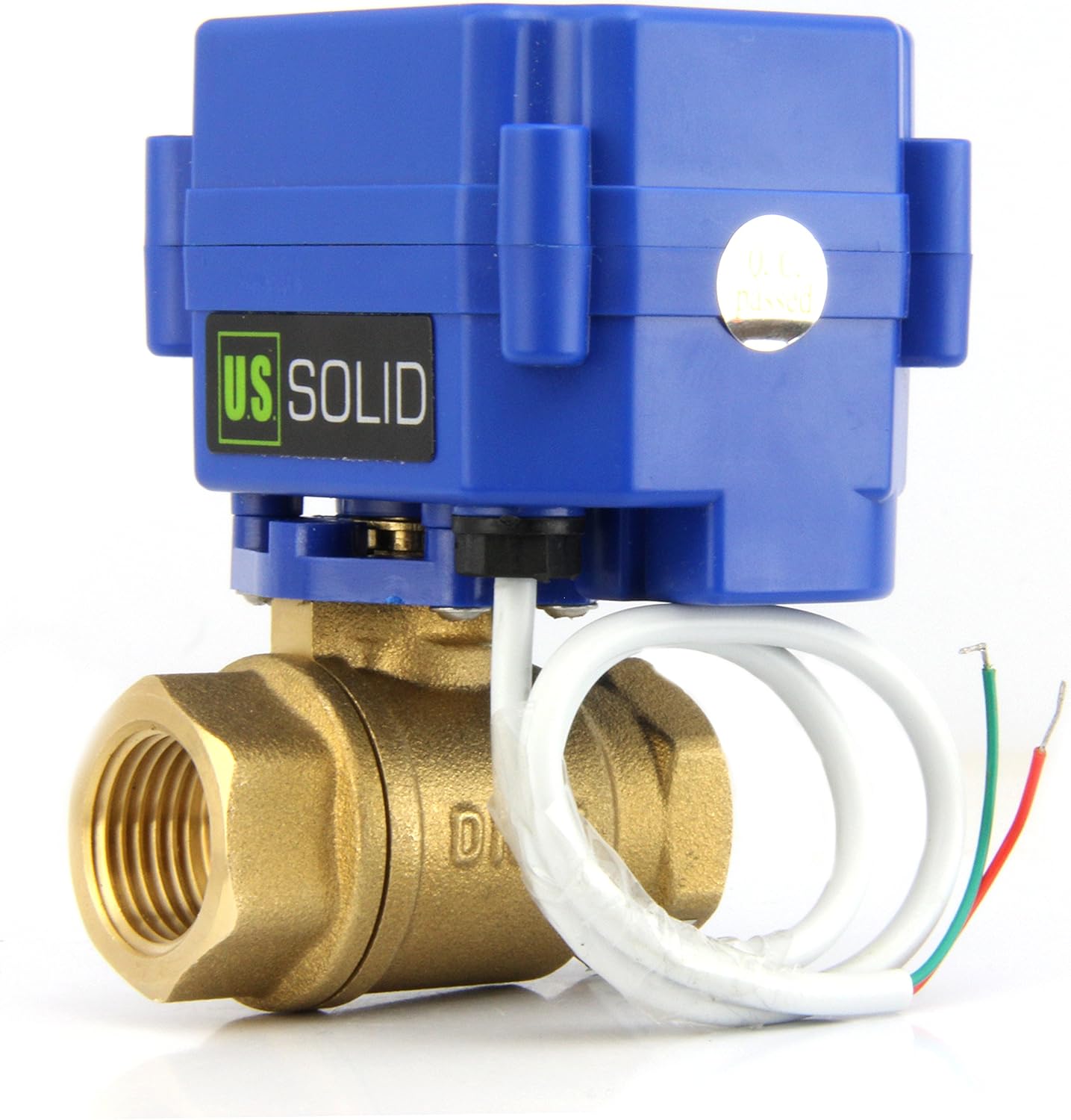

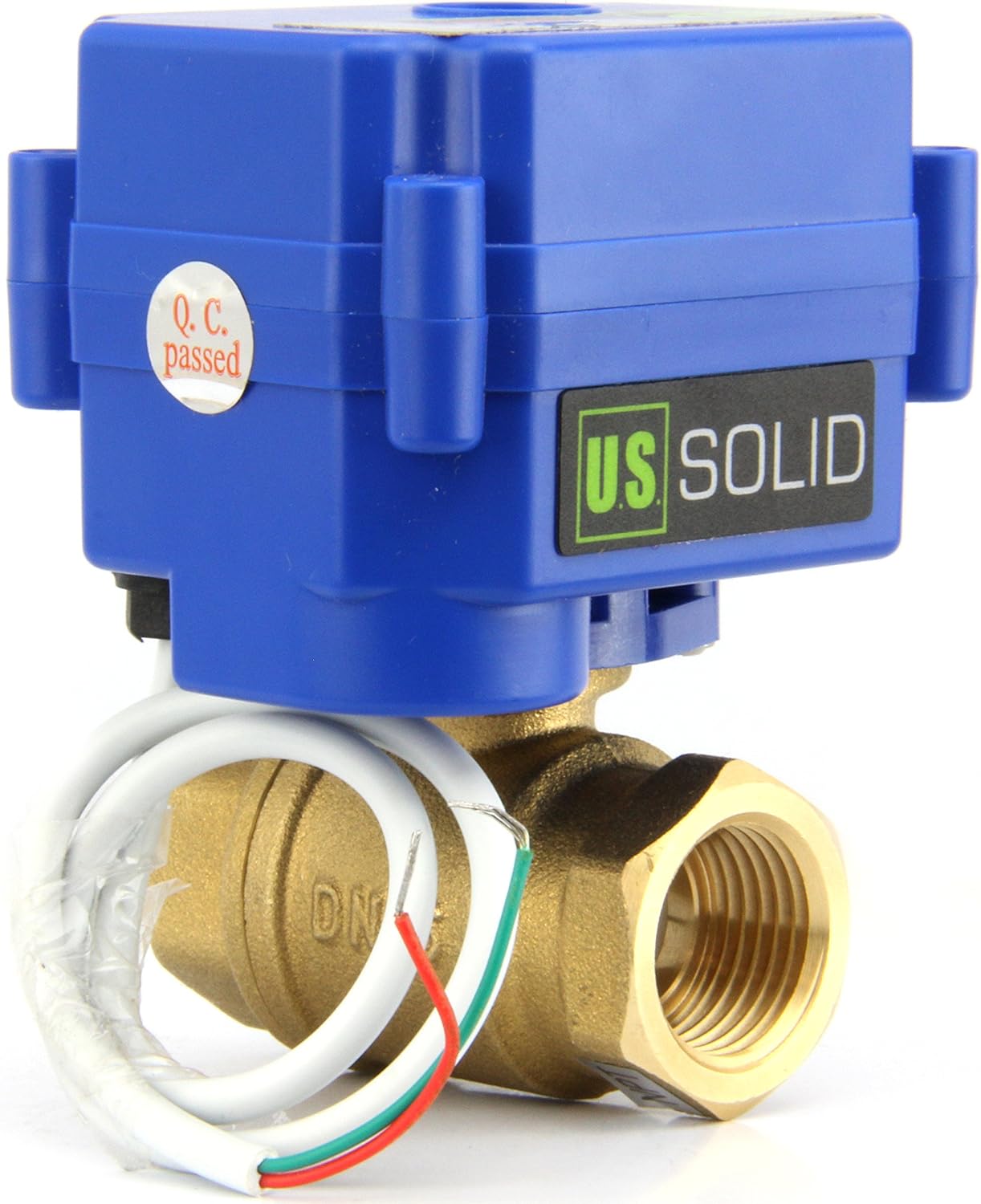

U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup

U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup

$57.58
Skip to product information
U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
  • U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
  • U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
  • U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
  • U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
  • U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
  • U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
  • U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
  • U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
  • U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
  • U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
  • U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
  • U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup

U.S. Solid Motorized Ball Valve- 1/2" Brass Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup

$57.58

Overview

  • Material : Brass
  • Brand : U.S. Solid
  • Exterior Finish : Brass
  • Inlet Connection Size : 0.5 Inches
  • Inlet Connection Type : National Pipe Tapered
  • Outlet Connection Type : National Pipe Tapered
  • Maximum Operating Pressure : 1000000 Pascal
  • Number of Ports : 2
  • Outlet Connection Size : 0.5 Inches
  • Specification Met : ANSI B16.34, IP65

About this item

  • SAFE AND RELIABLE- Made of durable brass, this valve is safe and reliable; The estimated life expectancy of 80,000 to 100,000 cycles means it is built to last. Warning: not for potable water.

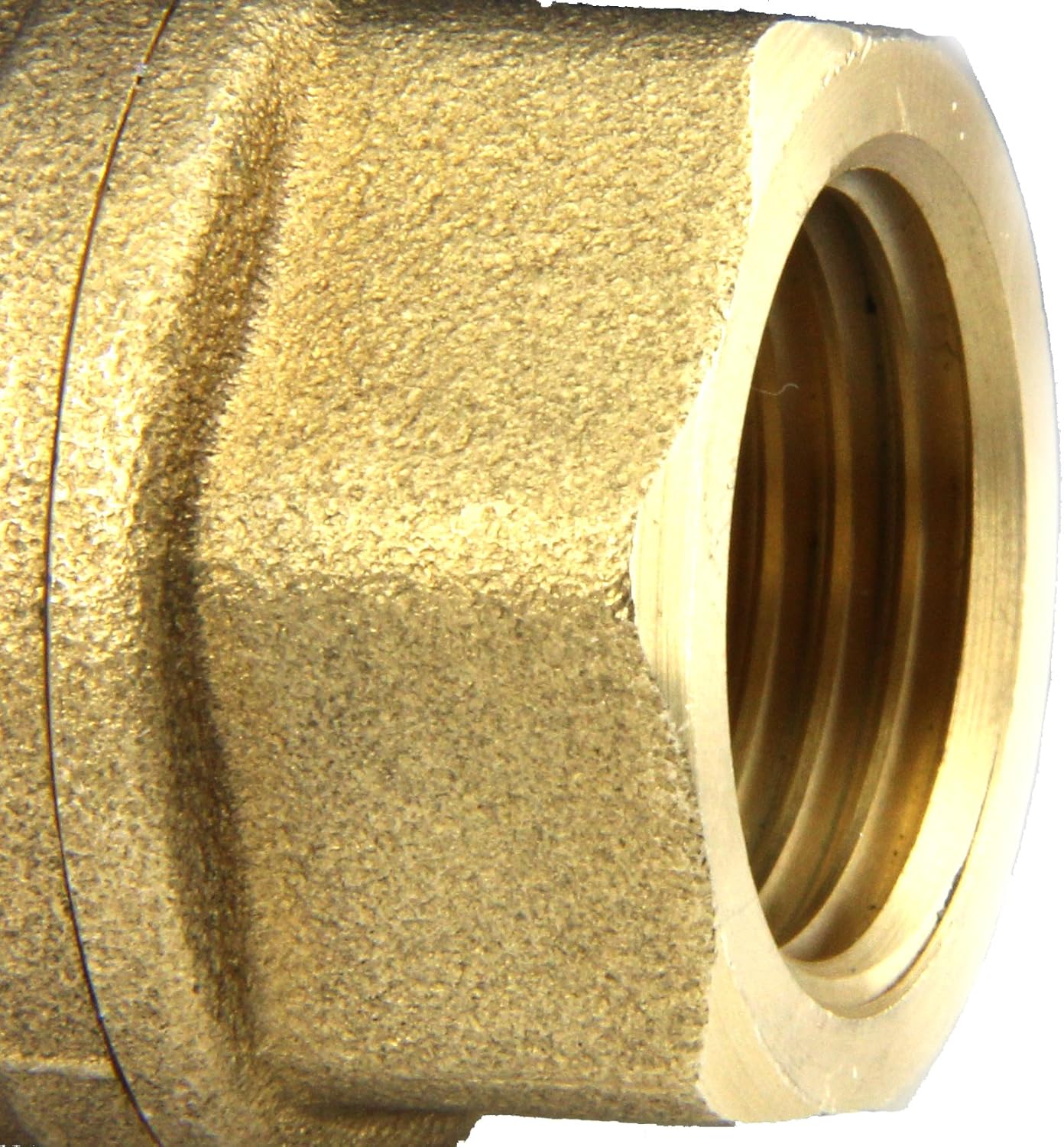

  • NPT THREADING-½” quality brass thread, manufactured and measured according to National Pipe Thread standards; This electrical ball valve is full port, meaning the bore in the ball is a full1/2”; This minimizes pressure loss through the valve; Perfect for home automation projects
  • 9V-24V AC/DC- Works effectively over entire voltage range; Will open or close valve in 3-5 seconds; Limit switch minimizes power after valve is fully open; Ideal for projects where an automatic return is necessary
  • 2 WIRE AUTOMATIC RETURN SETUP- Simple two wire connection, valve largely de-energizes after opening; Returns to fully closed if power is removed
  • ALTERNATIVE TO SOLENOID VALVES- Automatically cuts off power once fully open or fully closed; This reduces likelihood of overheating, making it a great alternative to solenoid valves for projects where a valve needs to be open for an extended period of time
